Wedi Fundo Riolito Neo Modular Curbed Shower System - Base/Linear Drain
Brand: Wedi
Availability: Ships from Factory (More Info)
Shipping: Free to Continental US (More Info)

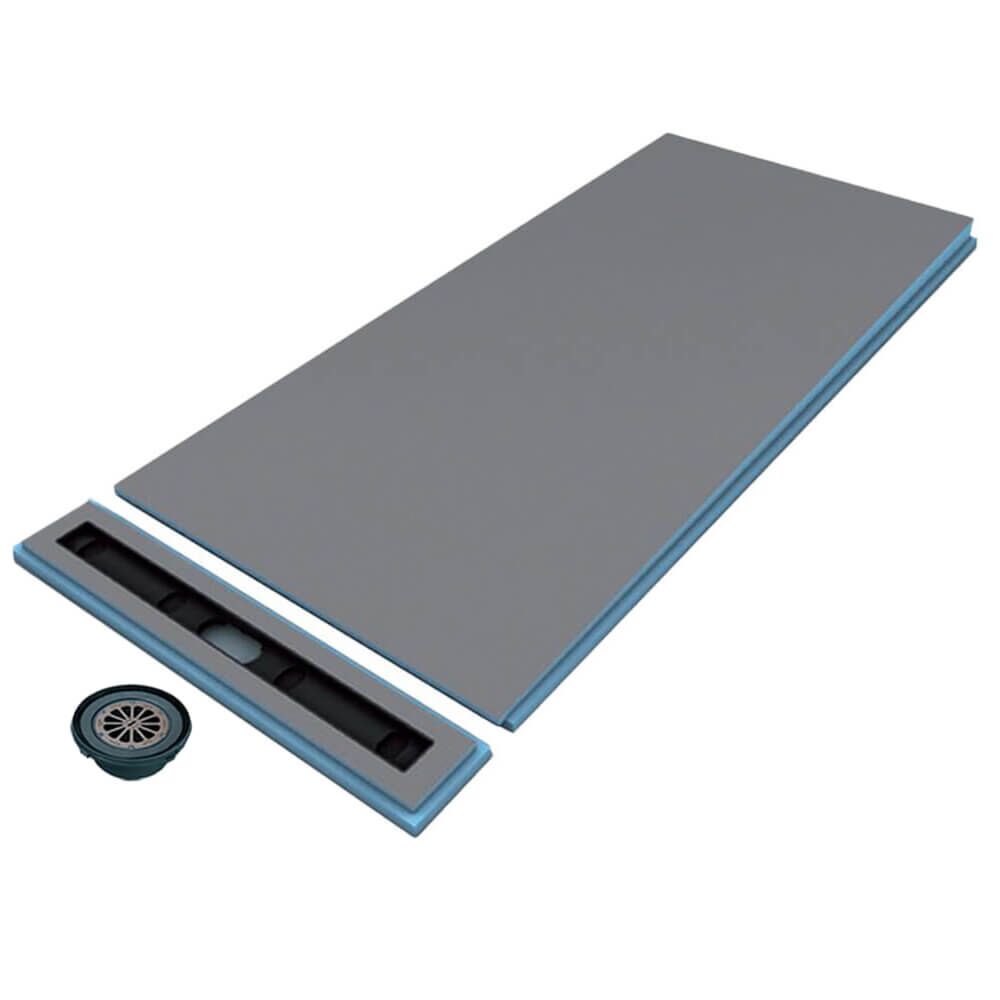

The Wedi Fundo Riolito Neo Modular System is a modular shower base/linear drain system allowing a greater variety of customization than single-piece fixed shower pans. It consists of two basic elements: a rectangular module with an integrated trench/linear drain, and a much larger sloped extension panel. Drainage can be installed close to the wall or you can use two extension modules, each leading away from either side with a centered drain module. Each module is made of Wedi's propriety 100% waterproof XPS foam and sanded resin coating.
Wedi Fundo Riolito Modular Shower Bases are designed for either barrier-free (curbless) or curbed installations. For the Curbless installation be aware that the thickness of the base will need to be taken into consideration by reducing the height of the shower subfloor or increasing the height of the bathroom floor to make for an even transition. Wedi does offer a Wedi Fundo Ligno Subfloor Recess Installation Kit
The drain module may also be used with mortar bed shower applications (to be topically waterproofed using Wedi Subliner Dry, connecting to the Riolito Neo trench/drain module). When purchasing, choose the appropriate drain, and the appropriate extension. The drain covers and installation kits are sold separately, and are available here: Fundo Riolito Drain Cover Plates. and Wedi Fundo Riolito Drain Installation Kits
New models: Click and Seal™ Drain Assembly included with Riolito neo Line Modules. Riolito Cover Plates sold separately. Wedi Fundo Riolito Modular Extension Module part numbers and product design have not changed. Fundo Click and Seal™ Drain fits all Fundo shower bases. Fast, clean and simple installation.
Wedi Fundo Riolito Neo Modular Shower System Drain Modules & Extensions:
| Model # | Type | Size | Technical Drawing | Replacement |
| US9320001 | Drain Module w/ Click and Seal Drain | 32" x 5-3/4" x 1-3/8" | Download | |
| US9320003 | Drain Module w/ Click and Seal Drain | 32" x 5-3/4" x 1-3/8" | ||
| US9320004 | Drain Module w/ Click and Seal Drain | 42" x 5-3/4" x 1-3/8" | ||
| US9320002 | Drain Module w/ Click and Seal Drain | 48" x 5-3/4" x 1-3/8" | Download | |
| US9320005 | Drain Module w/ Click and Seal Drain | 54" x 5-3/4" x 1-3/8" | ||
| US9330001 | Extension | 32" x 66-3/4" x 1-3/8" – 2-3/16" | Download | 075100050 |
| US9330003 | Extension | 36" x 66 3/4" x 1-3/8" – 2-3/16" | ||
| US9330004 | Extension | 42" x 66 3/4" x 1-3/8" – 2-3/16" | ||
| US9330002 | Extension | 48" x 66 3/4" x 1-3/8" – 2-3/16" | Download | 075100051 |
| US9330005 | Extension | 54" x 66 3/4" x 1-3/8" – 2-3/16" |
Download Assembly Instructions Fundo Riolito Neo modular
Download Safety Data Sheet - Fundo Shower Systems
Download Fundo Safety Data Sheet
Download Click and Seal Contractor Handbook
Download Wedi Steam Room and Steam Shower Design Manual
Download Wedi Limited Warranty
Download Technical Handbook
| SKU | RIOLITO NEO MODULAR |
|---|---|
| Weight (lbs.) | 2.45 - 23.00 |
| Non-Returnable | No |
| Manufacturer | Wedi |
| Dimensions (L x W x H) | 32" x 5 3/4" x 1 3/8" - 48" x 66 3/4" x 2 3/16" |
