Wedi Fundo Ligno Curbless Shower Pan (Base) w/ Click and Seal Drain Unit

Rating:
s:2:"80";%
The Wedi Fundo Ligno Curbless Shower Pan (Base) w/ Click and Seal Drain Unit is made for use with timber floors and has 3/4" and 1-1/8" thick edges, a uniform predefined slope, and is 100% Waterproof.
As low as $676.40

Brand: Wedi

Availability: Sold In Store - Ships From Store (More Info)

Shipping: Standard (More Info)

Only %1 left
SKU
FUNDO LIGNO BASE

The Wedi Fundo Ligno Curbless Shower Pan (Base) w/ Click and Seal Drain Unit is designed to provide for a low profile base thickness of only 3/4 in. (19 mm). This allows for a fast and flush installation into a subfloor assembly without cutting into floor joists. The system is designed to work without a curb.

Eliminating the need to cut into floor joists maintains the structural subfloor panels installed between the floor joist under the Wedi Fundo Ligno shower base. Barrier-free showers may be exposed to heavy point loads (e.g. wheelchairs) and require strong support. You can confidently rely on the structural strength of the Wedi base and subfloor as well as the Wedi Fundo Ligno’s traditional strong cement-based surface for the ideal tile bond using any suitable cement-based tile adhesives or grout.

Wedi Fundo Ligno Shower Pan (Base) Features:

  • Pre-sloped and internally waterproof Point drain shower base system for floor-even and barrier-free entry showers
  • Eliminates cutting into Floor Joists when recessed. Sloped Shower Floor Base with only 3/4" profile thickness
  • Ready for tiling upon installation
  • Entire system is 100% waterproof
  • Available in the full Wedi Fundo Ligno Shower kit.

Wedi Click and Seal Drain Unit Features:

  • Commercial grade, solid drain body
  • Fundo Click and Seal Drain fits all Fundo Shower Bases
  • Drain Assembly included with every Fundo shower base or kit
  • Drain cover can move both vertically and laterally to accommodate any size of tile
  • Drain cover can be selected a la carte, but standard cover remains included with Kits
  • Drain is equipped with extra weep holes for faster draining of water from thinset mortar layer
  • Hair strainer now included in the drain assembly
  • Fast, clean, and simple installation
  • No plumbing license, glue, or sealant needed
  • "Click" sound as checkpoint marks visible from the top view into the drain confirm the drain has properly sealed to Wedi Base.
  • Seals to ABS, PVC, or cast iron waste pipe- even on drain/floor pipes up to 5° out of plumb
  • A special kit is available to seal to copper pipe
  • Can be cleanly and safely disassembled and reassembled, if plumbing needs to be replaced

Note: The Wedi Fundo Click and Seal Height Adjustment Kit sold separately. The Drain Cover Exention only works for Wedi’s finished surface drain covers, but not with Wedi’s tileable covers due to their special water drainage design.

Here is how you select the right shower base size to fit the job in most cases:

Determine the distance between the center of the 2-inch pipe in the subfloor to all framed walls and where you plan to have the inside of a Wedi Curb (as if it were another framed wall). Next, take note of the longest dimension of the two distances measured along each axis (east/west and north/south.)

You will need to select a shower base that covers twice the length of the longest dimensions along each axis. This will ensure that the shower base will cover the entire shower area and, if needed, can be trimmed on-site to position the integrated wedi drain over the 2-inch waste pipe in the subfloor.

This method of calculating the correct shower base works for square and rectangular spaces with a mostly centered drain location. Where drains are very close to a wall, one of our off-center drain bases should be used if possible. Refer to the Wedi Technical Drawings section to select the correct base that covers your shower dimensions, and will properly align the integrated Wedi drain with the floor drain pipe.

Wedi Fundo Ligno Shower Pan Models and Technical Drawings:

Model Number Size Technical Drawing Replaces Part Number
US9200001 36" x 48" x 3/4" Download 073732014
US9200003 36" x 60" x 3/4" Download 073732016
US9200002 48" x 48" x 3/4" Download 073732015
US9200004 48" x 60" x 3/4" Download 073732017
US9200005 60" x 60" x 3/4" Download 073732018
US9200007 36" x 60" x 1-1/8" Download
US9200008 48" x 72" x 1-1/8" Download

Download Fundo Ligno Technical Data Sheet
Download Fundo Ligno Installation Manual
Download Fundo Safety Data Sheet
Download Click and Seal Contractor Handbook
Download Wedi Steam Room and Steam Shower Design Manual
Download Wedi Limited Warranty
Download Technical Handbook

More Information
SKUFUNDO LIGNO BASE
In the Box
  • (1) Fundo Ligno Curbless Shower Pan (Base)
  • (1) Click and Seal Drain Unit (US9400101)
Weight (lbs.)11.00 - 20.00
Non-ReturnableYes
ManufacturerWedi
Dimensions (L x W x H)36" x 48" x 3/4" - 60" x 60" x 3/4"
Write Your Own Review
You're reviewing: Wedi Fundo Ligno Curbless Shower Pan (Base) w/ Click and Seal Drain Unit
Customer Questions
Do you make 6ft or 8ft boards either 4 ft wide or 5 ft wide? 6ft x 5ft or 4ft 8ft by 5ft or 4 ft If so what is the cost?
Wedi does make 5' and 8' length boards but they are not as wide as you would like, so you would have to buy two and combine them for your project. Wedi has a 1/2 .in by 8' by 4' board for $117.83 or a 1/2 by 5' by 3' for $47.14. Shipping these boards does get expensive as the larger boards must be put on pallets for shipping.
Can I seam 2 Fundo Lingo curbless shower pans together to fit a 46x89 space?
No, because they are pre-sloped. However Wedi does make a 24 inch base extension that we sell: Wedi Shower Base Extension 48 .in x 24 .in
How does the Wedi drain attach to the actual drain pipe? Should the drainpipe be in place so that the drain connects when the pan is lowered into place?
Wedi drains are compression fit drains, I found some details instructions on the Wedi site and will add to the listing. I have also added a Wedi installation video that shows you how to install the drain to the shower base, then in the middle of the video they show you how to connect the drain assembly to the shower drain. (these directions are for standard 2 inch drain pipes.)
We only have space for a 36 .inx36 .in do you have a curbless try that'll work for that size?
The 36 .in x 48 .in can be cut down to size. You will want to cut 6 .in per side to maintain the center drain on the 48 .in length. You will also want to put the edge lip back on. Check out the wedi videos to show you how to do this. It can be done with a utility knife.
As Fundo Ligno base is pre-sloped and 3/4 .in thick at the edge, how does an extension work? Doesn't extending the slope make it more than 3/4 .in thick?
Yes, an extension would make it thicker. The extension is 12”x60” starts at 3/4” and ends at 1” thick. Please let us know if you have any other installation questions, we are here to help, and you can call us at 800-938-7925.
Can I get a 48”x72” curbless pan with an offset drain?
The largest they make is a 48 x 60, you could add the 12 inch extension, to one side and that would offset the drain.
1. Does Wedi have a linear drain that works with the 36 X 60 pan? 2. Can you use a different wallboard (eg, Wonderboard)?

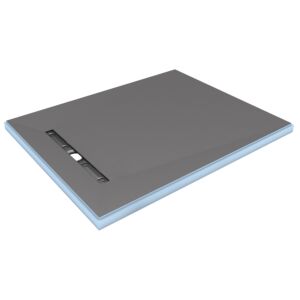

You will need to order the Linear drain, Wedi Fundo Riolito Neo Shower Base & Drain Assembly 36 x 60 then the Wedi Fundo Riolito Drain Cover Plate. Wedi will not warranty the entire shower system if wedi boards are not used in conjunction with wedi shower pans.
So up to 60 .inx60 .in the maximum thickness is 3/4 .in? The bigger the shower pan the less slope you will have correct?
Yes, they are all 3/4 thick at the edge, So the larger ones have less degree of angle to the slope. I will send you the TDS sheet for these pans.
If installing a 48x60 base with one corner rounded near the shower entry, what considerations are there where the curved wall meets slope?
We would need to see a drawing to give you sound advice on this. You can call us, or email us at [email protected]. Please ask for Jackie.
Can this be cut down for a 36” x 41” curbless neo angle shower?
Yes, you would want to use the 36 x 48 base and cut in at an angle at 41 inches. make sure to maintain the lip on the base when cutting it down, watch the video on the product page to see a demonstration.
Fundo Ligno or Fundo Primo? We have about 34x46 (36x48 possibly) space, second floor. How to choose between these two?
Fundo Primo is a thicker base and requires a shower curb, unless you cut down into the substrate, which would require reinforcing inbetween the floor joists. The Fundo Ligno is a thiner base and is designed to mount on top of the substrate, and be level with a tile floor for a seemless look. Please give us a call, we are happy to talk with you about your project and see what the best option would be for you.
What size drain cover does a 60 x 60 fundo lingo pan come with
These Fundo Ligno Pans come with a 4" x 4" brushed Stainless Steel Drain Grate.
Can you cut down the 36" x 60" to fit a 32" x 60" shower floor?
Yes, you would want to cut 2" from each side to keep drain centered, and wedi recommends when cutting to keep the lip on each cut side, rather than cutting straight through.
Do you have a pan that’s 96x34?
Wedi does not make a pan that large in Fundo Ligno. You could go with a Fundo Primo Pan (36 x 72) and and the (48 x 24) extension, and cut it down to 36, that would get you to a 96 x 36. How ever these fundo primo bases are thicker than the Ligno. So if you are looking to set a curbless entry you will need to either cut down the substrate under the Pan or build up the bathroom floor substrate to get to a level surface.
Do you make bigger pans 96x36
Wedi does not make a pan that large in Fundo Ligno. You could go with a Fundo Primo Pan (36 x 72) and and the (48 x 24) extension, and cut it down to 36, that would get you to a 96 x 36. How ever these fundo primo bases are thicker than the Ligno. So if you are looking to set a curbless entry you will need to either cut down the substrate under the Pan or build up the bathroom floor substrate to get to a level surface.
