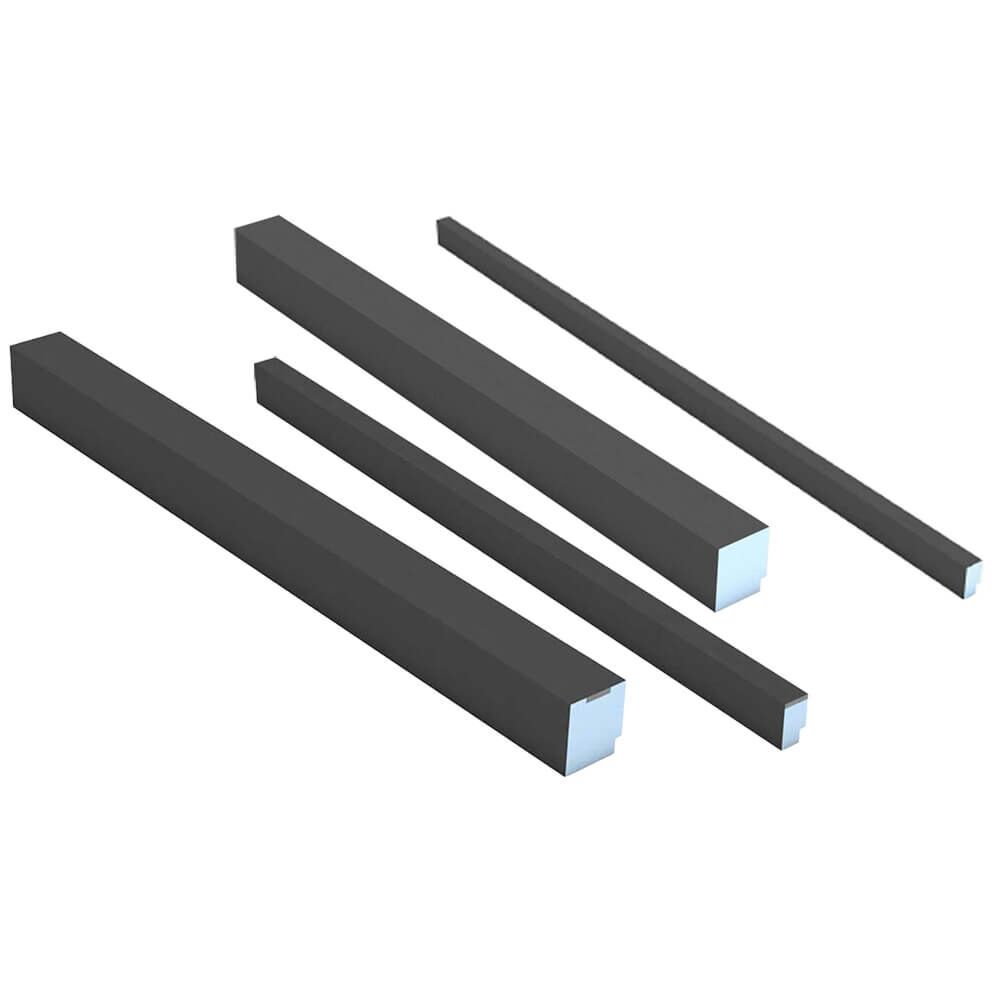

Wedi Full Foam Curbs

The Wedi Curbs (Foam) are designed to work directly with the Wedi building boards and can very easily be made into a complete shower system. Available in several options for shower entry designs where transitions are required, Wedi curbs can be installed with Wedi Fundo shower bases, as well as conventional mortar bed systems. Waterproof and versatile, Wedi curbs may be tiled before any glass doors, panels, or glass block is installed and can carry weight of up to 480 lbs./ft. Epoxy glue is recommended instead of screw fasteners when installing shower door tracks.

Wedi Curbs combine it all in one element when compared to traditional methods of 2' x 4' wood assembly, lath, mud and waterproofing. They come pre-sloped so water runs back into the shower. The Wedi foam curbs have a blue core made from extruded polystyrene rigid foam which is free from CFCs. They make an ideal base for all plastering and tiling work.

Wedi Curb AT (Anchor Track) with integrated and coated PVC core anchor strip (centered; 2 in. wide by 3/8 in. thick). Integrated anchor strip allows fastener attachment (glass panel tracks/door units). wedi Curb AT is sloped on top surface.

Wedi Curbs Features:

Huge variety of design, function, and format
Economical and reliable
100% waterproof

Wedi Curb Dimensions and Technical Drawings:

Model #	Type	Size (L x W x H)	Technical Drawing
US3000039	Full Foam Curb	4 1/2" x 5" x 5'	Download
US3000041	Full Foam Curb	4 1/2" x 5" x 8'	Download
US3000038	Full Foam Lean Curb	3 1/2" x 2" x 5'	Download
US3000040	Full Foam Lean Curb	3 1/2" x 2" x 8'	Download
US3000048	Full Foam Curb AT	4 1/2" x 5" x 5'	Download
US3000049	Full Foam Lean Curb AT	3 1/2" x 2" x 5'	Download

Download Wedi Shower Curb Installation Manual
Download Wedi Limited Warranty
Download Technical Handbook
Download Shower and Spa System Solutions Catalog

More Information
SKU	FULL FOAM CURBS
Weight (lbs.)	0.70 - 4.30
Non-Returnable	Yes
Manufacturer	Wedi
Dimensions (L x W x H)	60" x 4 1/2" x 5 1/8" - 96" x 2" x 3 1/2"

Write Your Own Review

Customer Questions

Can the full foam curb be used when installing frameless shower glass that requires brackets screwed into the curb or is the wedi curb over required?

The full foam curb .incan .in take a frameless shower glass insert if you tile and grout, then drill through the tile, insert molly and screw into place. The curb over is preferable however.

Wedi says that the curb over cannot be penetrated. How do you suggest water sealing when you drill for glass bracket thru .incurb over .in into 2x4?

This product question/answer is for the foam over curbs. Yes you can drill on the wedi foam overs, you will want to use a urethane caulk to seal. Wedi joint sealant works but some installers like to use a clear urethane product.
