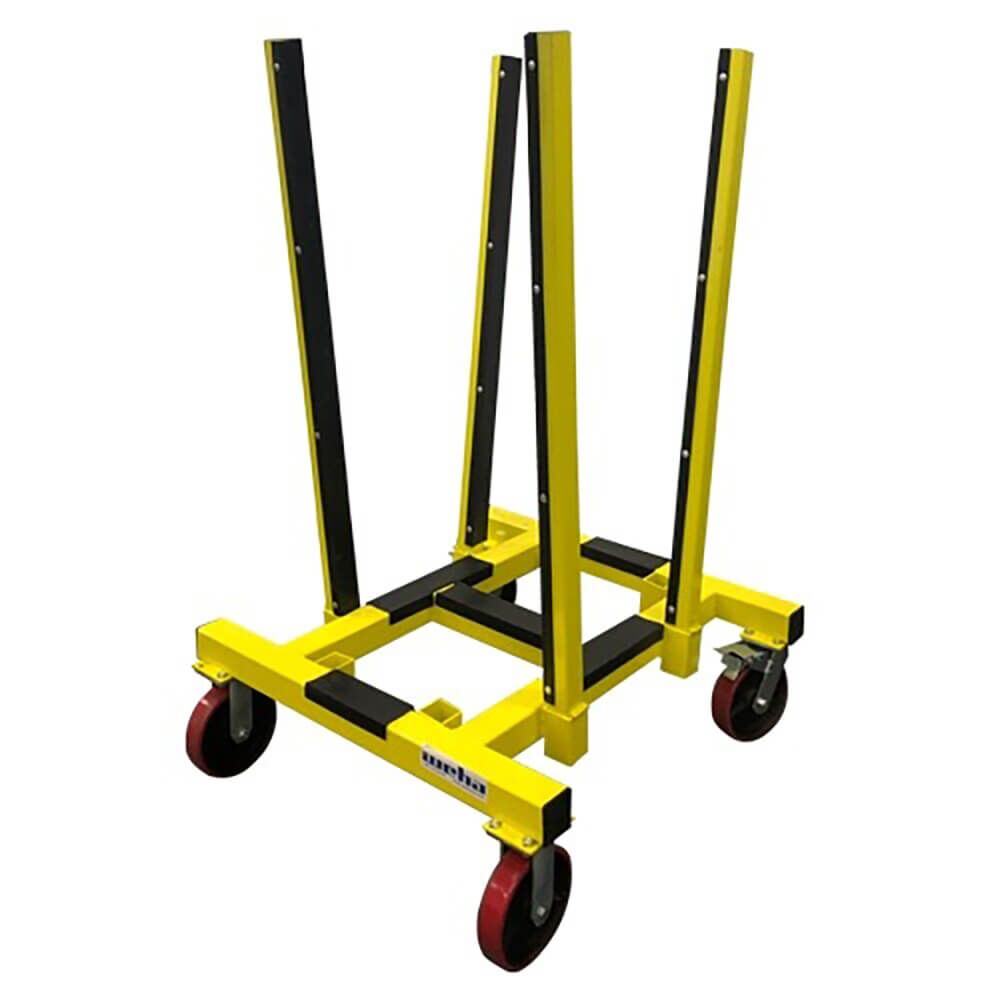

Weha V Slab Flip Cart - 137206

The Weha V Slab Flip Cart (137206) is made for moving stone from bridge saws to CNC machines, line machines, etc. It is designed to assist in flipping the stone from the polished side to the back side and vice versa. The stone is loaded onto the bridge saw with the polished side up. After cutting the piece, the piece then moves to the CNC machine where the polished side is now facing down.

All 4 posts are removable with 8 different post positions. Simply take 2 of the posts out. Using a slab lifter move the stone (polished side up) to the V Cart and rest it against the 2 posts. This will put the back side of the stone against the posts. Now insert the 2 post that were previously removed and lean the stone against them. Now the polished side is against the post. Remove the first 2 posts and use a lifter to easily access the back of the stone. Now the stone can be loaded on the CNC machine polished side down.

The Weha V Slab Flip Cart (137206) comes with 8" heavy duty caster wheels. 2 Fixed and 2 Swivel locking wheels. With a weight capacity of 2200 lbs, it can be used for moving pieces all over the shop from one work station to the next.

All areas on the cart where stone will come in contact with the V Cart is lined with rubber for scratch resistance and damage to the stone.

Base is a solid 38" x 36" platform that can easily hold stone without the concern of turning over.

Weha V Slab Flip Cart Specifications:
