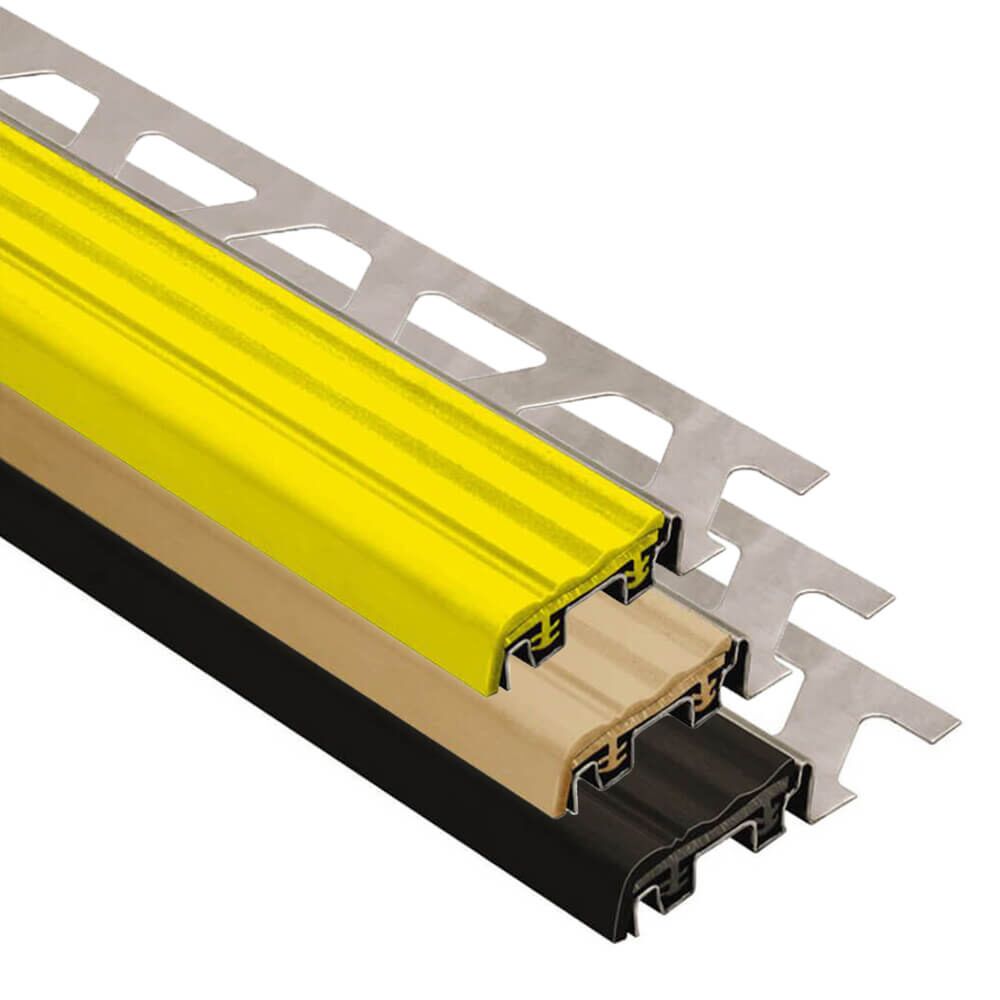

Schluter TREP-SE Stainless Steel 1-1/32" Stair Nose Tile Edging Trim

Schluter TREP-SE Profiles are designed to protect tiled stair edges and provide an easily visible, slip-resistant wear surface for a durable, safe, and visually appealing stair-nosing design.
As low as $44.06

Brand: Schluter

Availability: Ships from Factory (More Info)

Shipping: $49.95 Flat rate ground shipping for unlimited Schluter products in this order. Some exclusions apply.(More Info)

Only %1 left
SKU
S TREP SE

The Schluter TREP-SE Stainless Steel 1-1/32" Stair Nose Tile Edging Trim is designed to protect tiled stair edges and provide an easily visible, slip-resistant wear surface for a durable, safe, and visually appealing stair-nosing design.

The profiles feature a trapezoid-perforated anchoring leg made of aluminum which is secured in the mortar bond coat beneath the tile and supports a slip-resistant thermoplastic rubber wear surface. The tread surface of TREP-SE/-S/-B is available in a variety of colors and can be replaced in case of damage or wear.

The leading edges of TREP-S, TREP-SE and TREP-B have a 5/16" (8 mm) radius. Matching end caps are available.

Schluter TREP-S Features:

  • Prevents tile edges on stairs from chipping
  • Ensures a slip-resistant wear surface
  • Features a trapezoid-perforated anchoring leg made of stainless steel (-SE) or aluminum (-S and –B) with a slip-resistant, thermoplastic rubber wear surface
  • Ideal for offices, shopping malls, and other public areas
  • Designed with a colored tread surface, which can be replaced in case of damage or wear (various colors available)
  • Designed for areas exposed to heavy foot traffic
  • End caps available
  • Available in brushed stainless steel (-SE) or aluminum (-S or -B)

Schluter Edging Trim Installation

  1. Select the profile according to tile thickness and format.
  2. Using a notched trowel, apply thin-set mortar to the area where the profile is to be placed. If the JOLLY, QUADEC, RONDEC, RONDEC-DB, DECO-DE, FINEC, or FINECSQ profile is to be used as edging for an outside wall corner, finish tiling one wall first; then trowel thin-set mortar over the corner area of the second wall.
  3. Press the perforated anchoring leg of the profile into the mortar and align.
  4. Trowel additional thin-set mortar over the perforated anchoring leg to ensure full coverage and support of the tile edges.
  5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile; the profile should not be higher than the tiled surface, but rather up to approx. 1/32" (1 mm) lower.
  6. Set the tile to the integrated joint spacer, which ensures a uniform joint of 1/16" - 1/8" (1.5 - 3 mm). With the stainless steel profiles, leave a space of approximately 1/16" - 1/8" (1.5 - 3 mm).
  7. Fill the joint completely with grout or setting material.
  8. Work with materials and tools that will not scratch or damage sensitive surfaces. Setting materials must be removed immediately, especially from aluminum.

Note: Matching corners and connectors are available. Corners are held in place with thin-set mortar. Fill the ends of the profile with thin-set mortar prior to inserting the accessories. Connectors are held in place with a friction fit. Insert the connector into the profile approximately half the length of the connector piece and connect the adjacent profile.

How do I cut profiles?

Schluterâ„¢ profiles are available in a variety of different materials , so methods for cutting vary. Below are best practices for cutting according to material type.

Plastic

Plastic profiles may be cut using Schluterâ„¢-SNIPS or similar. It is important to make sure the blade is sharp in order to ensure a clean cut.

Aluminum

One option for cutting aluminum profiles is to simply use a hacksaw. Look for a bimetal blade and select the highest teeth per inch, or TPI, available. A miter box is recommended to help ensure a straight cut. Aluminum profiles may also be cut using a variable-speed angle grinder with the Schluter-PROCUT-TSM cutting wheel. Set the angle grinder to the lowest speed. A clamp or cutting jig can be used to secure the profile and help ensure a straight, clean cut. Finally, aluminum profiles can also be cut using a chop saw or miter saw with a non-ferrous blade. After cutting, make sure to remove any burs with a file before installation.

Brass

Brass profiles can be cut by using a hacksaw with a bimetal blade with the highest teeth per inch available, or by using a chop saw or miter saw with a non-ferrous blade. Removing any burrs from the cut end of the profile with a file (or similar) is also recommended.

Stainless Steel

The simplest option for cutting stainless steel is to use a variable-speed angle grinder with the Schluter-PROCUT-TSM cutting wheel. Set the angle grinder to the lowest speed. Another option for cutting stainless steel profiles is to use a band saw with a metal cutting blade. After cutting, make sure to remove any burs with a file before installation.

More Information
SKUS TREP SE
Weight (lbs.)1.83 - 3.05
Non-ReturnableNo
ManufacturerSchluter
Warranty5 Year Limited Warranty
Dimensions (L x W x H)4' 11" x 1 53/64" x 11/32" - 8' 2-1/2" x 1 53/64" x 17/32"
Trim MaterialStainless Steel/Thermoplastic
Trim Length4' 11", 8' 2-1/2"
