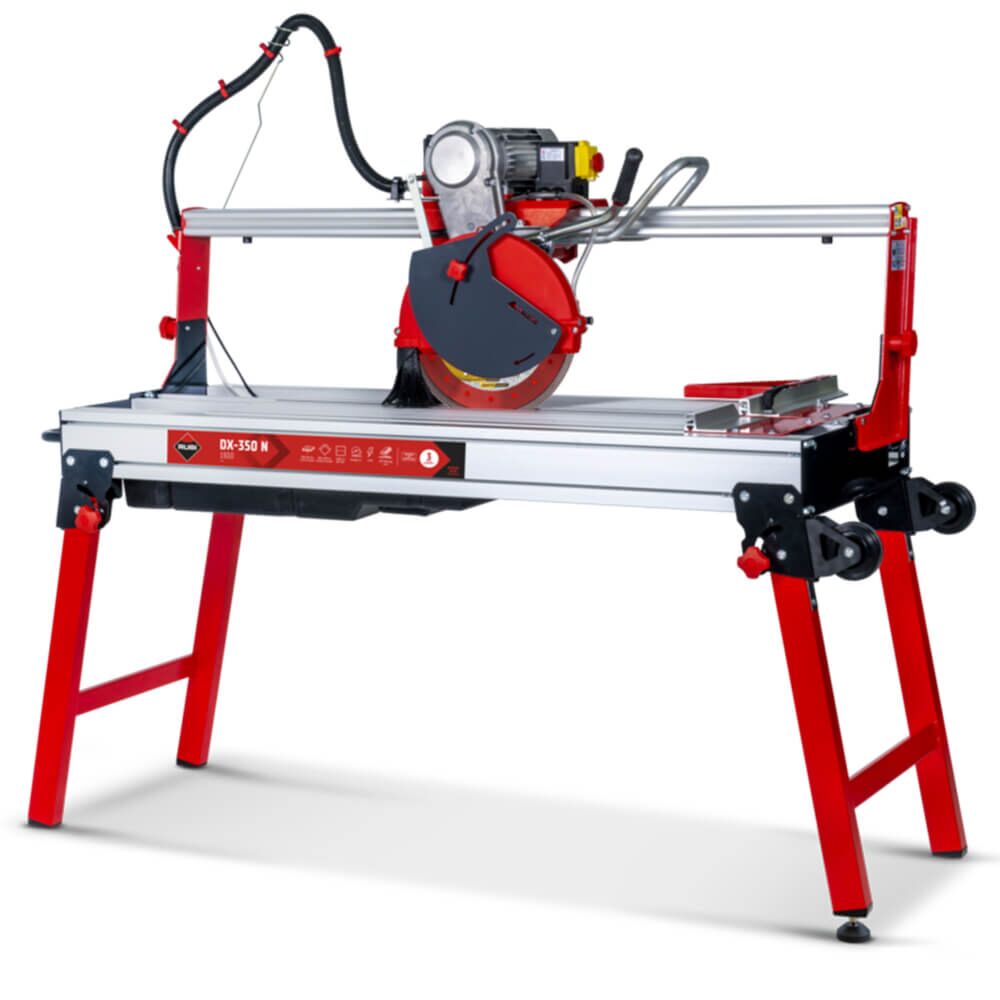

Rubi Tools DX-350-N 1300 Laser and Level Wet Saw - 52918
Brand: Rubi Tools
Availability: This product will ship from Factory. (More Info)
Shipping: Free to Continental US (More Info)
The Rubi Tools DX-350-N 1300 Laser and Level Wet Saw (52918) is a tile cutting saw with a mobile head, equipped with a plunge effect to give professionals great versatility in cuts. It is ideal for cutting all types of ceramic tile and building materials such as; marble, granite, bricks, facing, refractories, etc.
The DX-350-N has a motor assembly mounted on sliding bearings and offering maximum precision and reliability that helps to obtain perfect finishes. The lightweight and durable aluminum structure offer high resistance to normal working conditions in construction. Thanks to the protector that includes the cutting head, the DX-350-N tile saws can hold blades of all types; continuous rim, turbo, segmented, etc.
The DX-350-N can work with both 12 and 14 in. diameter blades (12” blade included), Meaning the professional can pick and choose the most convenient and viable solution for them.
The system of retractable legs offers extra protection during transport and storage of the tile saw. And its built-in wheels facilitate handling and movement over short distances at the same site.
Maintenance of the Rubi DX-350-N Bridge Saws is minimal, thanks to the aluminum chassis, and daily cleaning is easy due to the removable tables and trays.
The DX-350-N LASER & LEVEL includes a 2mW laser tracer (Class 2) that facilitates cutting visibility and positioning, as well as a spirit level system for setting up the tile saws at the worksite.
Available in two models: 1000 and 1300, with cutting lengths of 46.7 and 58.5 in. respectively. (Call for the DX-350-N 1000 Model)
**Due to Regulatory Requirements and OSHA Requirements Rubi is just supplying the 30 Amp plug with the DX 350 (REF# 52918), and DS 250 (REF#'s 52934 and 52944).
Main Features:
- Motor assembly mounted on sliding bearings for maximum precision and reliability. Perfect finishes.
- Aluminium structure. Lighter cutter with maximum resistance to working conditions.
- High performance plunge effect. Maximum cutting height.
- Equipped with protective head for safety in the use of segmented blades.
- Equipped with ZERO DUST system. Tested and certified by TNO.
- Aluminium structure. Lighter cutter with maximum resistance to working conditions.
Standard Features:
- Equipped with protective head for safety in the use of segmented blades.
- With thermal and overload security switches.
- Blade cooling by water pump with regulating tap
- Diamond blade Ø 14” (350 mm.) not included.
- Allows the use of a Ø 12” (300 mm.) blade.
- Adjustable mobile head with plunge effect capability.
- Retractile legs with "shield" function and wheels for transportation.
- With a stop for repetitive cuts.
- With lateral stop for repetitive cuts.
- Aluminium working surface removable for easy cleaning.
- Removable water tank system.
- 2mW laser plotter.
- Circular level for easy field installation.
- Machine supplied without cable.
- It comes with the new ZERO DUST system mounted, as well as a second set of standard splash skirt.
Rubi Tools DX-350-N Wet Tile Saw Specifications:
| Power | 3 hp - 2,200 W |
| Voltage | 120V |
| RPM | 3400 |
| Length of Cut | 58-7/16 in. with plunge |
| Diagonal Length of Cut | 41-5/16" |
| Arbor | 1" |
| Blade Capacity | 12" or 14" |
| Depth of Cut | 4-1/8" (14" blade) |
| Dimensions | 78" x 33-7/8" x 56-5/16" |
| Weight | 277.78 lb |
| SKU | RUBI DX-350-N |
|---|---|
| In the Box |
|
| UPC | 8413797529180 |
| Manufacturer | Rubi Tools |
| Manufacturer Part Number | 52918 |
| Blade Capacity | 12" |
| No Load Speed (rpm) | 3400 |
| Dimensions (L x W x H) | 78.75" x 33.86" x 56.3" |
| Max Length of Cut (in.) | 58.5 |
| Max Depth of Cut (in) | 4.13 |
| Arbor Size | 1" |
| Depth of Cut at 45° (in.) | 4.13 |
| Diagonally Cuts (in.) | 41.3 |
| Motor | Electric |
| HP | 3 |
| Voltage | 120 |
| Wet or Dry | Wet Only |
| Weight (lbs.) | 277.78 |
