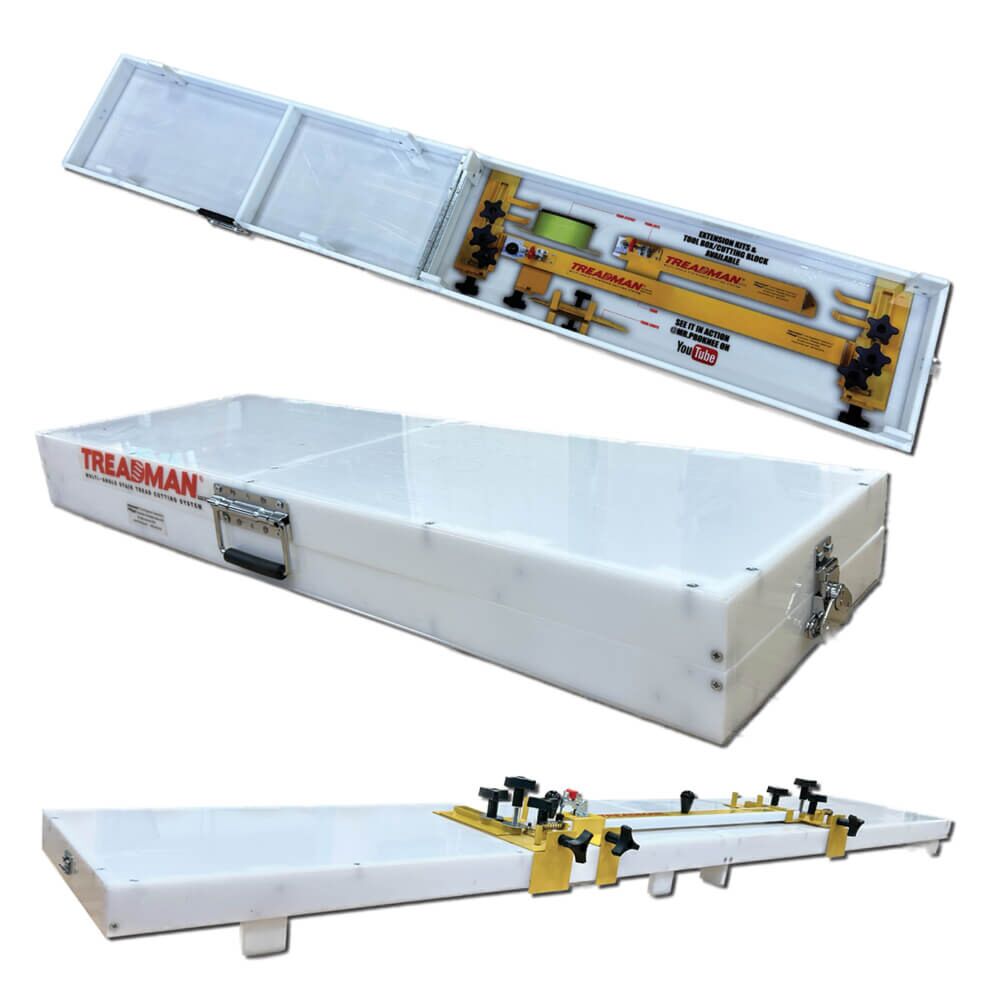

Proknee Standard Treadman w/ Tool Box/Cutting Block
Brand: ProKnee
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Free to Continental US (More Info)
The ProKnee Treadman Multi Angle Stair Tread Cutting System is a tool that cuts installation time in half while side-stepping pattern scribing or using tricky technical techniques. By securely locking in each step’s and tread’s specific size, Treadman acts as your template and cutting guide for quick, accurate, and perfectly cut stair treads every time, thus eliminating the chance for costly mistakes. The upgraded Standard Treadman Tool can do stair treads from 35-1/4" to 61-1/2" in length. If you have stairs that are shorter or longer, ProKnee offers 3 Extension Kits that can be purchased separately - allowing you to complete installations on treads from 22-1/2" to 9'-1/2"! Wall plates adjust to step depths from 10" to 13-1/4", while the 1 Piece Step/Riser Template Kit captures riser heights from 6" to 8"
ProKnee Treadman Multi Angle Stair Tread Cutting System Features
- Quick, accurate measurements
- Use as a cutting guide while transferring stair geometry to rubber treads
- Additionally use to mark out hardwoods, tile, ceramics, and any other hard surface material
- Depth adjustment from 10" to 13-1/4"
- Additional extension kits available for expanded widths from 22-1/2" to 9'-1/2" (not included)
- All wallplates adjust to all wall angles

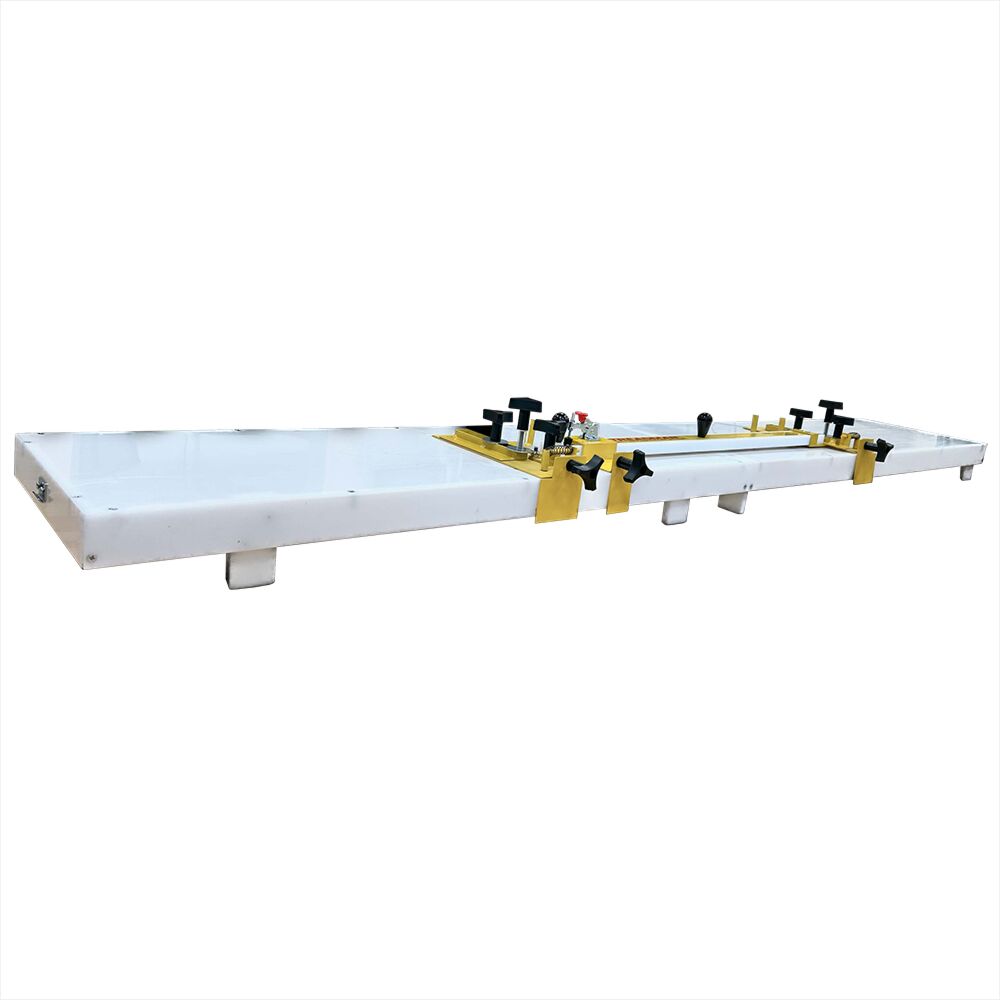

- Additional blade friendly self-storage box doubles as expanded heavy-duty cutting surface
- Ergonomic knob layout for ease of use
- Self-lubricating adjustment bar
- Sure grip surface on bottom of plates locks them firmly into position
- Middle nose plate keeps tool straight
- 1/16" steel plates for maximum accuracy

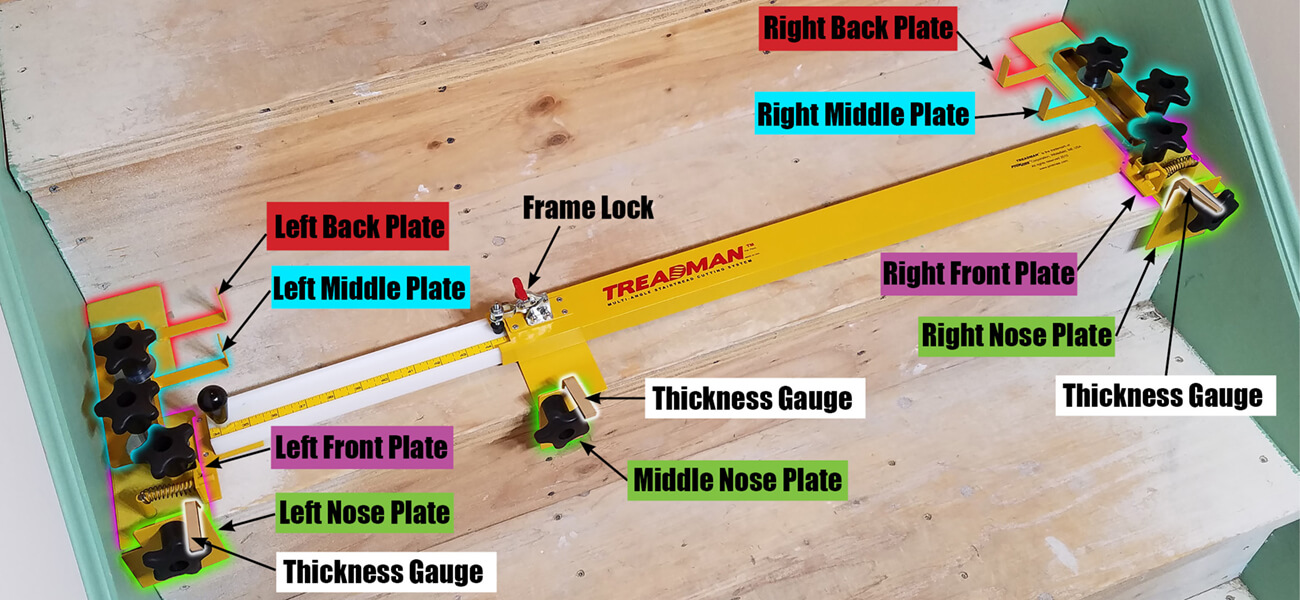

Multi-Angle Wall Plates for Accuracy
Large easy to adjust knobs and multiple spring-loaded steel wall plates adjust to any wall angle you come up against on a job site.
Cutting Guide
By securely locking in each step’s & tread’s specific size, Treadman acts as your template and cutting guide for quick, accurate and perfectly cut stair treads every time, thus eliminating the chance for costly mistakes.
Rubber Stairtread Thickness Gauge
Automatically adjusts from 1/32” to 1/4” to accommodate for different rubber stair tread thicknesses.
Extension Kits to Suit Any Stair Width
Use Extension Kits 1, 2 or 3 with the Standard Treadman to complete jobs requiring different length stair treads
- Standard Treadman: Adjusts from 35 ¼" to 61 ½"
- Extension Kit 1: Adjusts from 4' 8⅞" to 6' 11" (sold separately)
- Extension Kit 2 (longest) - Adjusts from 6' 10 ⅜" to 9' ½" (sold separately)
- Treadman Extension Kit 3 (shortest)- Adjusts from 22 ½" to 36" (sold separately)
| SKU | PK 9:TRDMB1 |
|---|---|
| In the Box |
|
| Weight (lbs.) | 29.5 |
| Non-Returnable | No |
| Manufacturer | ProKnee |
| Manufacturer Part Number | 9:TRDMB1 |
| Order Number | TRDMB1 |
| Dimensions (L x W x H) | 38-3/4" x 13-1/2" x 6-1/2" |
