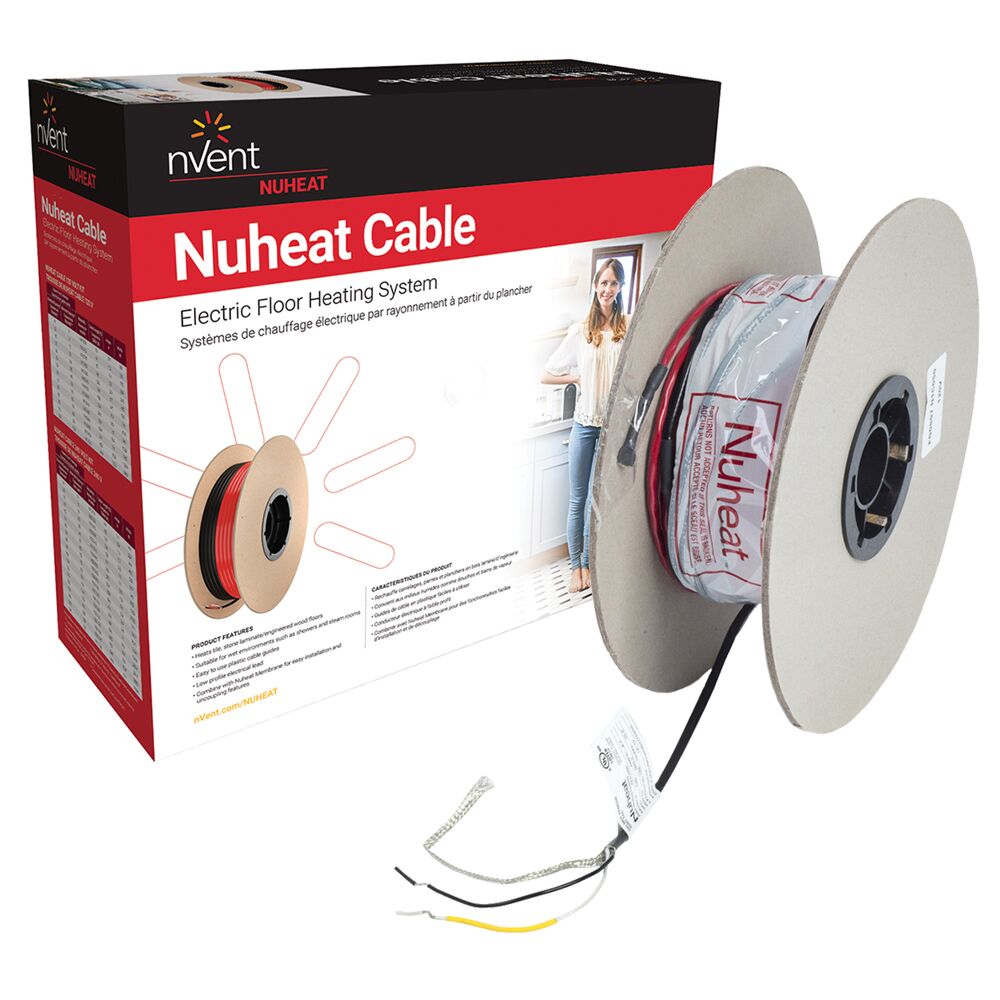

Nuheat Cable System for In-Floor Heating - 240v
Brand: Nuheat
Availability: Sold In Store - Ships From Store (More Info)
Shipping: Free to Continental US (More Info)
Nuheat Cable is a floor heating system that allows contractors to instantly make on-site adjustments to the floor heating coverage for any room including those with curves and angles. This coated floor heating wire is flexible enough to be laid by hand using included plastic straps. Nuheat cable for radiant floor systems allows great flexibility for non standard shaped rooms. The strapping is installed, then the wire is laid in specified widths. Nuheat Cable can be also used to heat wet areas such as shower beds or saunas.

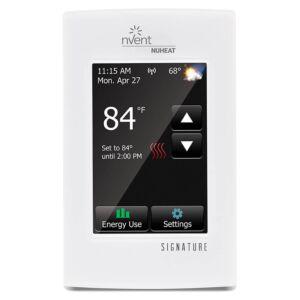

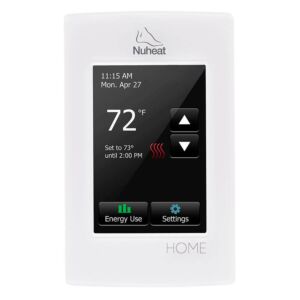

Nuheat wire includes Nuheat strapping for securing to floor. Nuheat Cable can be controlled using the same programmable and non-programmable thermostats as NuHeat mats. The 240V Cables are 3/16 inches thick.
Nuheat Cable System for In-Floor Heating 240v Specifications:
| Square Foot Coverage | |||||||||
| w/ Cable Guides | w/ nVent NUHEAT Membrane | ||||||||
| 3" Spacing (Std. Output) |
2"/3"/2" Spacing (High Output) |
2/3/2 Pillar Spacing (Std. Output) |
2 Pillar Spacing (High Output) |
3 Pillar Spacing (Low Output) |
|||||
| Model No. | Part No. | Length (ft) | Amps | Watts | 12 W/ft2 | 15 W/ft2 | 12 W/ft2 | 15 W/ft2 | 10 W/ft2 |
| N2C015 | FG0615 | 56 | 0.7 | 165 | 15 | 12 | 14 | 12 | 17 |
| N2C020 | FG0616 | 80 | 0.9 | 224 | 20 | 15 | 21 | 17 | 24 |
| N2C025 | FG0617 | 102 | 1.3 | 302 | 25 | 20 | 26 | 21 | 31 |
| N2C035 | FG0618 | 136 | 1.7 | 403 | 35 | 30 | 35 | 28 | 41 |
| N2C045 | FG0619 | 178 | 2.2 | 523 | 45 | 35 | 46 | 37 | 54 |
| N2C055 | FG0620 | 207 | 2.6 | 632 | 55 | 45 | 53 | 43 | 63 |
| N2C065 | FG0621 | 250 | 3.1 | 742 | 65 | 50 | 64 | 52 | 76 |
| N2C070 | FG0622 | 277 | 3.5 | 842 | 70 | 60 | 71 | 58 | 84 |
| N2C085 | FG0623 | 334 | 4.3 | 1020 | 85 | 70 | 86 | 69 | 102 |
| N2C090 | FG0624 | 358 | 4.6 | 1102 | 90 | 75 | 92 | 74 | 109 |
| N2C100 | FG0625 | 393 | 5 | 1211 | 100 | 85 | 101 | 82 | 120 |
| N2C120 | FG0626 | 472 | 5.9 | 1427 | 120 | 100 | 121 | 98 | 145 |
| N2C135 | FG0627 | 529 | 6.8 | 1621 | 135 | 110 | 136 | 110 | 162 |
| N2C145 | FG0628 | 561 | 7.1 | 1704 | 145 | 120 | 144 | 116 | 172 |
| N2C160 | FG0629 | 630 | 8 | 1914 | 160 | 130 | 162 | 131 | 193 |
| N2C170 | FG0630 | 665 | 8.6 | 2054 | 170 | 140 | 171 | 138 | 204 |
| N2C190 | FG0631 | 757 | 9.6 | 2314 | 190 | 160 | 195 | 157 | 233 |
| N2C215 | FG0632 | 849 | 10.8 | 2589 | 215 | 180 | 219 | 176 | 261 |
| N2C240 | FG0633 | 953 | 12.1 | 2905 | 240 | 200 | 246 | 198 | 293 |
| SKU | NUHEAT CABLE 240V |
|---|---|
| Non-Returnable | No |
| Manufacturer | Nuheat |
| Warranty | Twenty-five (25) years under tile, stone, laminate, and engineered wood floors from the date of purchase. |
| Voltage | 240 |
| Weight (lbs.) | 4.00 -25.00 |
| Dimensions (L x W x H) | 14" x 13" x 5" |
