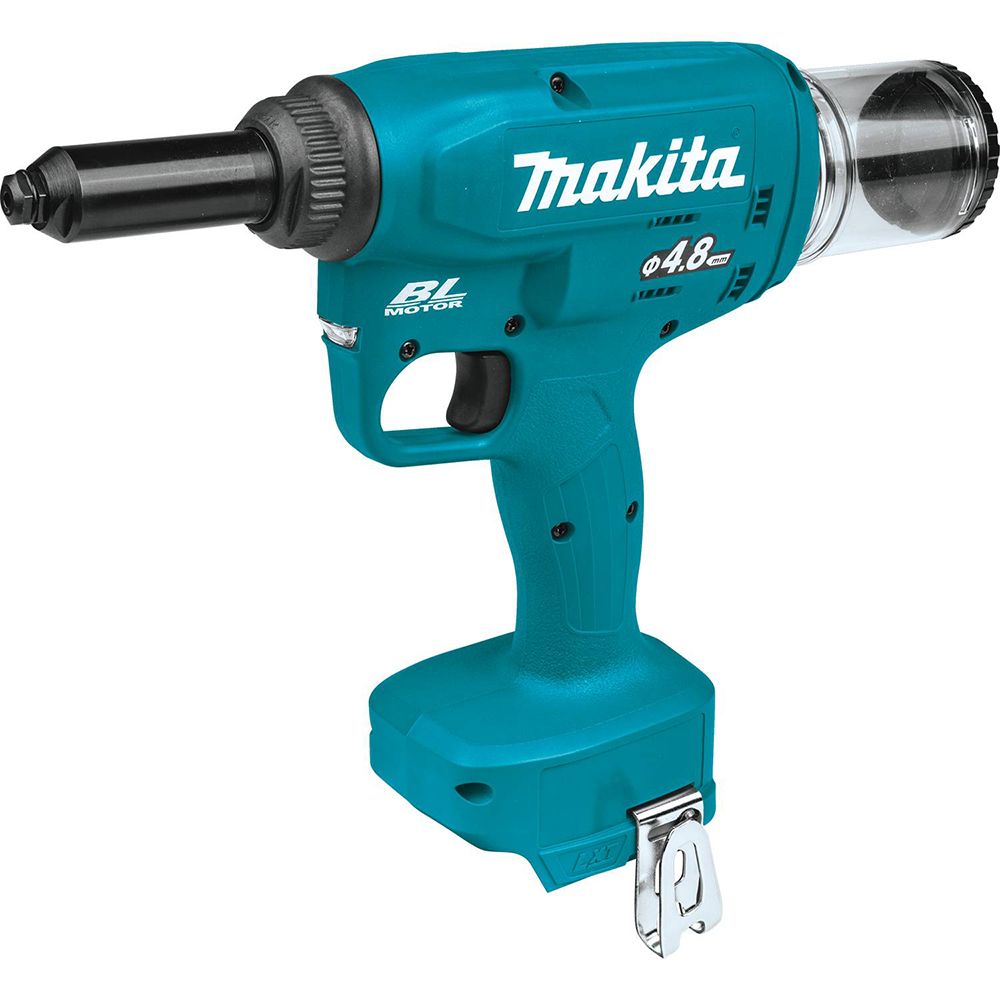

Makita XVR01Z 18V LXT Lithium‑Ion Brushless Cordless Rivet Tool

The Makita XVR01Z (Tool Only) installs rivets up to 3/16"
$1,499.00

Brand: Makita

Availability: Sold In Store - Ships From Store (1 available in store). (More Info)

Shipping: Free to Continental US (More Info)

SKU
T-MA XVR01Z

Install or pull aluminum, steel, and stainless steel rivets with the 18V LXT Brushless Cordless Rivet Tool, Tool Only (XVR01Z). The XVR01Z installs rivets up to 3/16" (4.8 mm). The BL Brushless Motor delivers 10kN of pulling force, while the 0.98" (25 mm) stroke sets most rivets in one stroke. The XCV01Z is compact at only 12-3/8" long and weighs only 4.9 lbs with 5.0Ah LXT Battery (sold separately). Other features include an ergonomically designed handle for increased comfort, built-in L.E.D. light, and a transparent mandrel catch container for convenient viewing of container level.

The Makita XVR01Z Features:

  • BL Brushless Motor delivers 10 kN of pulling force
  • Installs rivets up to 3/16" (4.8mm)
  • 0.98" (25mm) stroke sets most rivets in one stroke
  • Capable of pulling aluminum, steel, and stainless steel rivets
  • Compact and ergonomic design at only 12-3/8" long
  • Weighs only 4.9 lbs. with battery (battery not included) for reduced operator fatigue
  • An ergonomically designed handle provides increased comfort
  • Built-in L.E.D. light illuminates the work area
  • The tool holds the rivet in place allowing the user to operate in any orientation
  • Transparent mandrel catch container for convenient viewing of container level
  • Equipped with Star Protection Computer Controls to protect against overloading, over-discharging, and over-heating
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol

Download Product Brochure
Download Product Brochure

More Information
SKUT-MA XVR01Z
In the Box
  • (1) 18V LXT Lithium‑Ion Brushless Cordless Rivet Tool (XVR01Z)
  • (1) 3/16" (4.8 mm) Jaw Set (199731-7)
  • (1) Molybdenum Disulfide Grease (191D57-7)
  • (1) 3.2 mm (1/8") Nosepiece and Jaw Pusher with Tube (199728-6)
  • (1) 4.0 mm (5/32") Nosepiece and Jaw Pusher (191C04-2)
  • (1) 4.8 mm (3/16") Nosepiece and Jaw Pusher with Tube, XVR01 (191F79-9)
UPC088381876469
ManufacturerMakita
Warranty3-year limited warranty
Manufacturer Part NumberXVR01Z
Weight (lbs.)4.9
MotorBrushless
Dimensions (L x W x H)4.29" x 10.71" x 10.16"
Voltage18
