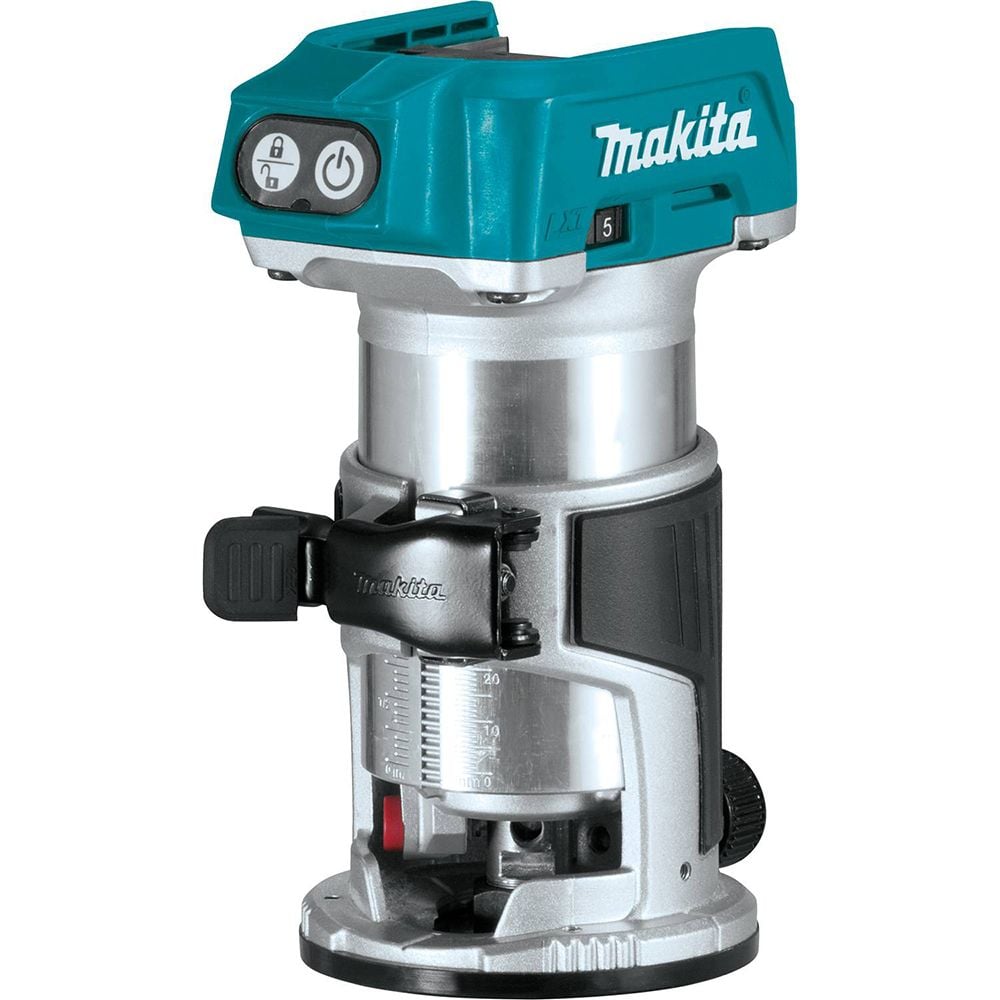

Makita XTR01Z 18V LXT Lithium‑Ion Brushless Cordless Compact Router

Makita XTR01Z 18V LXT Lithium‑Ion Brushless Cordless Compact Router (Tool Only)
$199.00

Brand: Makita

Availability: Sold In Store - Ships From Store (1 available in store). (More Info)

Shipping: Standard (More Info)

SKU
T-MA XTR01Z

Corded power meets cordless convenience with the 18V LXT Brushless Compact Router (model XTR01Z, tool only, batteries, and charger sold separately). The 18V LXT Router has an efficient Makita BL Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. It is compatible with Makita 18V LXT Lithium-Ion batteries (sold separately).

The XTR01Z is engineered for a full range of cabinetry and woodworking applications. It has a variable speed control dial (10,000 – 30,000) RPM) to match the speed to the application, with electronic speed control to maintain constant speed under load and soft start feature for smoother start-ups and better accuracy. Convenience features include the smooth rack-and-pinion fine depth adjustment system for more precise settings, dual L.E.D. lights to illuminate the work surface, and a quick-release cam lock system for convenient depth adjustments and base removal/installation. For users of corded Makita Compact Routers (models RT0700C, RT0701C), the bases used with these corded routers are fully compatible with the XTR01Z. In addition, the XTR01Z easily connects to Makita vacuum cleaners with the optional dust nozzle for improved dust extraction.

The Makita XTR01Z Features:

  • LXT technology delivers 380 feet of cutting performance in red oak using a 1/4" (6mm) straight bit at a 5/32" (4mm) depth with a 5.0Ah battery (battery not included)
  • Makita-built brushless motor delivers faster and more accurate cuts in a variety of materials
  • The electronically-controlled BL Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
  • Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
  • Electronic speed control maintains constant speed under load
  • The On/Off button with a separate lock button helps prevent accidental start-up of the tool for user and workpiece protection
  • Soft start feature for smoother start-ups and better accuracy
  • Smooth rack-and-pinion fine depth adjustment system for more precise settings
  • Slim and ergonomically designed body with rubberized grip for increased comfort and control
  • Aluminum housing and base for increased durability and accuracy
  • Dual L.E.D. lights illuminate the work area
  • Quick-release cam lock system for convenient depth adjustments and base removal/installation
  • Accepts industry standard template guides
  • High visibility base design for improved handling and performance
  • The base can be removed quickly to install other bases
  • Plunge capacity of 0 - 1-3/8" with plunge base attached and 0 - 1-9/16" with trimmer base attached (bases sold separately)
  • Non-marring high-durability base insert for increased workpiece protection
  • Shaft lock for quick and easy bit changes
  • Easy-to-read depth scales
  • Uses 1/4" shank routers bits
  • Connects to Makita vacuum cleaners with optional dust nozzle for a cleaner work environment
  • Equipped with Star Protection Computer Controls to protect against overloading, over-discharging, and over-heating

Makita 18V LXT Lithium‑Ion Brushless Cordless Compact Router Specifications:

Collet 1/4"
Base Fixed
Variable speed dial Yes
LED light Yes
Constant speed control Yes
Power Type Cordless
Plunge Capacity 1-9/16"
Form Factor (LXT) Compact

Download Product Brochure
Download Product Brochure

More Information
SKUT-MA XTR01Z
In the Box
  • (1) 18V LXT Lithium‑Ion Brushless Cordless Compact Router (XTR01Z)
  • (1) Spanner Wrench (781011-1)
  • (1) Spanner Wrench (781039-9)
  • (1) 1/4" Collet (763637-1)
  • (1) 3/8" Collet (763619-3)
  • (1) Straight Guide (122965-7)
  • (1) Template Guide (343577-5)
UPC088381844420
ManufacturerMakita
Warranty3-year limited warranty
Manufacturer Part NumberXTR01Z
Arbor Size1/4"
Overall Length5-1/4"
Weight (lbs.)4.6
No Load Speed (rpm)10,000 - 30,000
MotorBL Brushless Motor
Dimensions (L x W x H)6.2" x 8.5" x 5.8"
Voltage18
