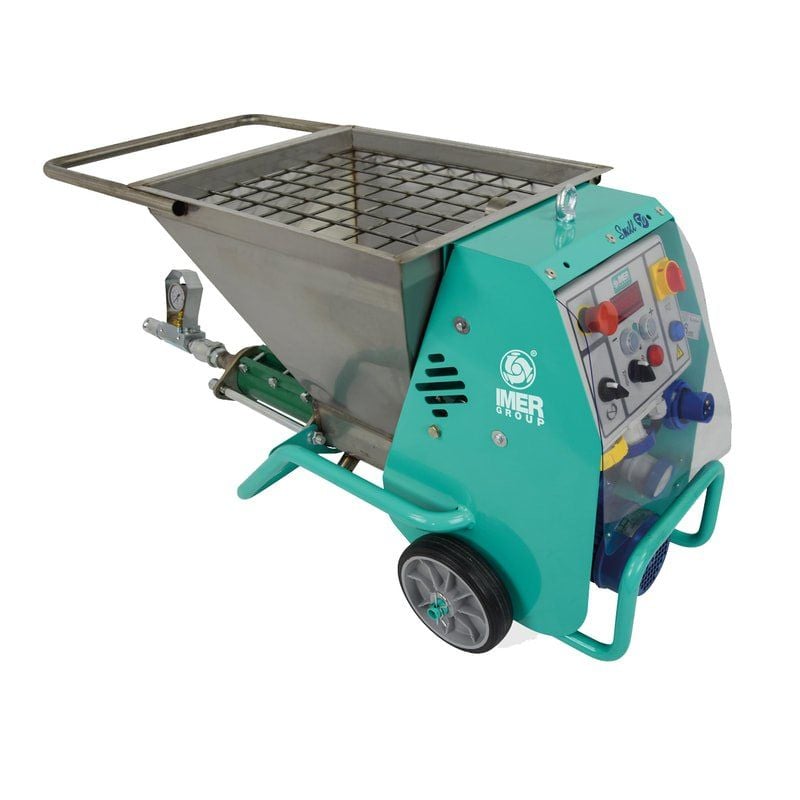

Imer Mighty Small 50 EVO & PLUS Pumping and Spraying Machine
Imer Mighty Small 50 Pumping & Spraying Machine for a variety of uses such as fire proofing, grouting, filling moulds and spraying stucco.
As low as $7,999.00
Brand: Imer
Availability: Ships from Factory (More Info)
Shipping: Standard (More Info)
Only %1 left
SKU
IMER MIGHTY
Imer Mighty Small 50 Pumping & Spraying Machine has the ability to spray or pump up to 3.5 gallons of material per minute through 85 ft. of 1" hose. The versatility of the Mighty SMALL 50 is very impressive - spray fire proofing, pump grout into door jams, fill moulds at precast plants, spray stucco onto residential homes, apply grout to finish rock walls. Easy to use, easy to clean. The Mighty Small 50 can operate continuously on 110v 20 amp and 220V service.
Imer Mighty Small 50 Technical Specifications:
| Â | SMALL 50 EVO | SMALL 50 PLUS |
| Power supply | 110v/60Hz | 230v/60Hz |
| Pump motor | 1.75 hp | 3 hp |
| Material flow rate | 1.7 - 30 cu ft / hr | 1.7 - 54 cu ft / hr |
| Max. aggregate size | 3/16" | 1/4" |
| Max. pumping distance hose w/grout | 100 ft | 150 ft |
| Max. pumping distance hose w/SLU | 150 ft | 200 ft |
| Hopper capacity CF | 1.75 cu ft | |
| Loading height | 25-1/2" | |
| Sound pressure level | < 74 dB(A) | |
Imer Mighty Small 50 Optional Equipment:
- Dual diaphragm compressor - Part # 1107546
- Mortar, stucco and fireproofing gun kit - Part # 1107005
- Paint and fine coatings gun kit - Part # 1107010
- Grout injection kit - Part # 1107006
- Tuck pointing gunkit - Part # 1107504
- 50' x 25mm material hose - Part # 1107525
- 33' x 25mm material hose - Part # 1107526
- 16' x 25mm material hose - Part # 1107527
- 5' overhead wand - Part # 1107549
- Vibrating hopper for tuckpointing - Part # 1107015
- Vibrating screen for bulk sand mixes - Part # 1107548
- Pipe hook for block, form and door jamb filling - Part #1107570
- D5 - 2.5 Rotor - Part # 1107085
- D5 - 2.5 Stator - Part # 1107084
- Small 50 Plus - Airless spray kit - Part # 1107669
Download Product Brochure
Download User Manual
Download Small 50 Quick Start Users Guide
| SKU | IMER MIGHTY |
|---|---|
| In the Box |
|
| Manufacturer | Imer |
| Warranty | One Year Warranty |
| Motor | 110V/60Hz, 1.75hp with D8-1.5 rotor/stator - 230V/60Hz, 3hp Single phase with D8-1.5 rotor/stator |
| HP | 1.75 / 3 |
| Dimensions (L x W x H) | 44" x 20-1/2" x 25-1/2" |
| Voltage | 110/230 |
| Weight (lbs.) | 110.00 |
