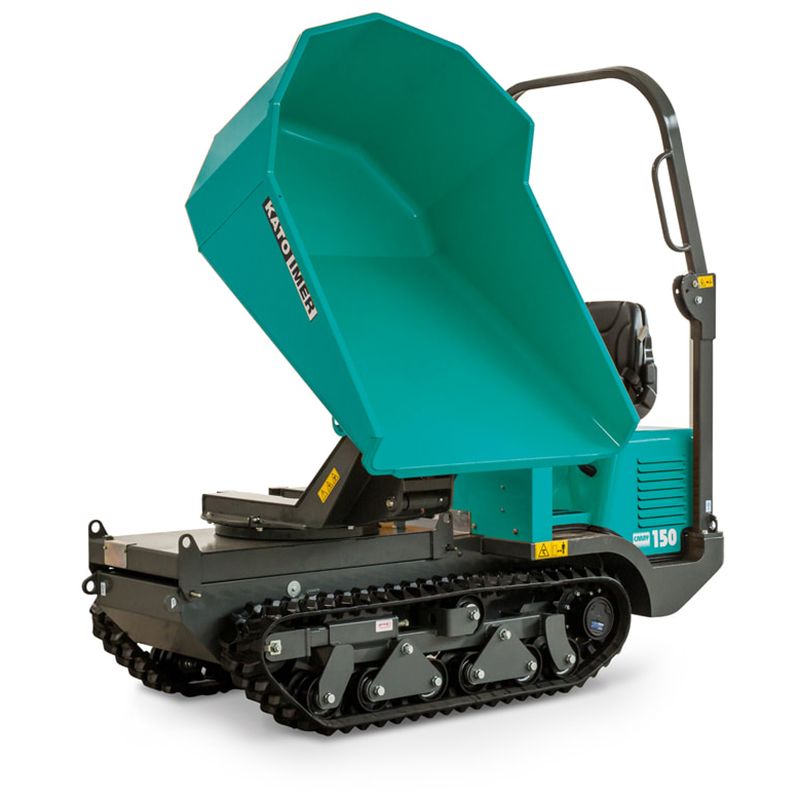

Imer Carry 150 Diesel Powered Track Dumper w/ 180° Swivelling Bucket
Brand: Imer
Availability: Ships from Factory (More Info)
Shipping: Free to commercial address to Continental US (More Info)
IMER / KATO Tracked Transporters are Not Your Average Concrete Buggy.
This versatile machine not only hauls concrete, the Imer Carry 150 offers a 180° trilateral hydraulic lift and swivel bucket with a 28 cubic foot capacity to handle a multitude of loading/unloading options.
Power, Speed, and 180° Swivel Dump
The Carry 150 has an independent dual circuit hydrostatic transmission with a variable displacement axial piston pump and dual displacement axial piston hydraulic engine for each track. The standard Carry 150 model is powered by a Kubota diesel engine and offers a 180° trilateral hydraulic lift and swivel bucket to handle a multitude of loading/unloading options.
Imer Carry 150 Diesel Powered Track Dumper Specifications:
| Carry 150 | |
| Engine | Kubota D902, 20 hp |
| Machine weight | 1,896 lbs |
| Operating load | 3,307 lbs |
| Payload capacity | 28 cu ft |
| Speed | 5 mph |
| Max allowed slope when empty | 32° - 62% |
| Max allowed slope when loaded | 32° - 62% |
| Ground clearance | 9-1/2" in |
| Start | Electric |
| SKU | 5240304101 |
|---|---|
| In the Box |
|
| Weight (lbs.) | 1896.0 |
| Non-Returnable | No |
| Manufacturer | Imer |
| Manufacturer Part Number | 5150002 |
| Dimensions (L x W x H) | 107" x 42-1/2" x 93-3/4" |
