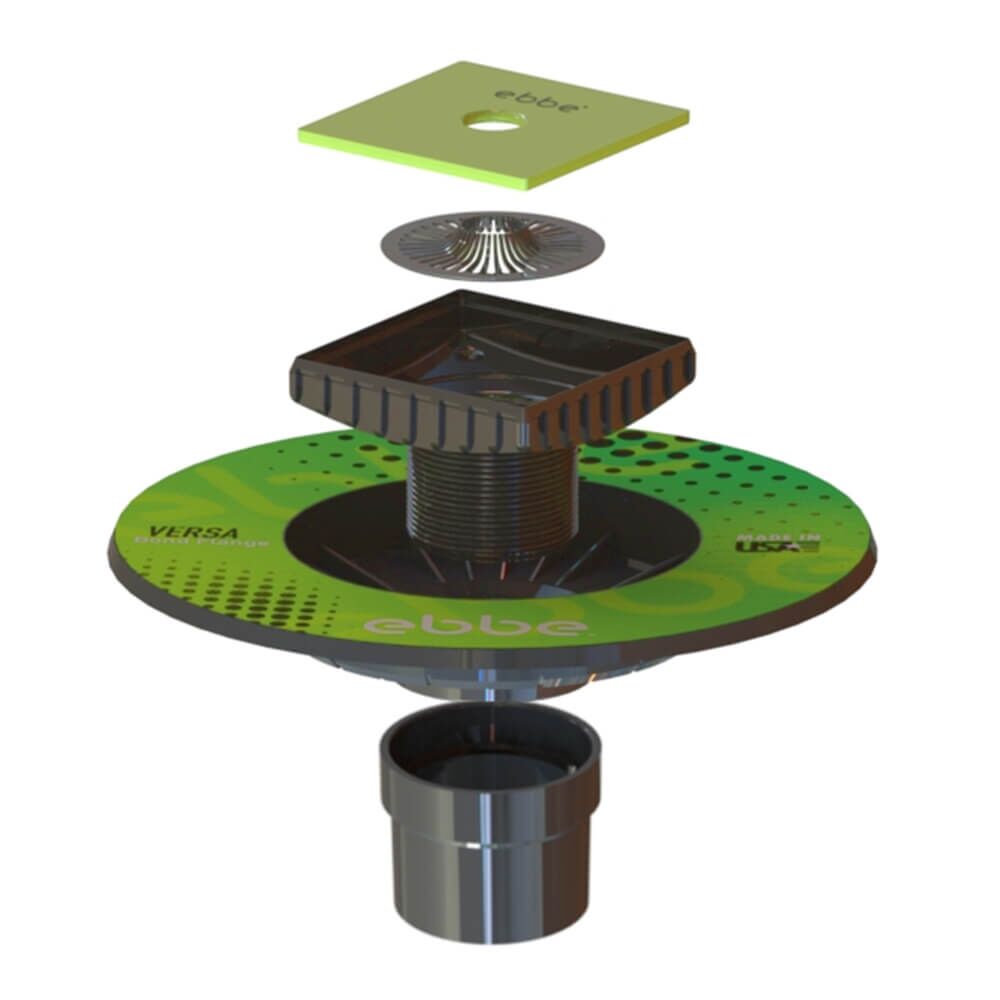

Ebbe Rough-Ins VERSA-ABS Drain Body w/ Square Riser
Brand: Ebbe
Availability: Sold In Store - Ships From Store (2 available in store). (More Info)
Shipping: Standard (More Info)
The Ebbe VERSA Bond Flange Bundle is the latest in drain technology. Not only does it combine all the best highlights from other drains, but includes original features for ease of installation and optimal function. It’s square shape means only easy straight cuts are needed, no difficult circle cuts.
If you’re installing ADA compliant, curb-less, or barrier free showers, you will need the Ebbe VERSA Bond Flange as your low profile solution.
If you’re installing a foam shower pan with surface waterproofing you will need the VERSA Bond Flange.
If you need to convert an existing traditional mud/mortar bed installation to surface waterproofing, the VERSA Bond Flange can achieve this for you by threading into your existing clamp collar drain as a clamping ring.
The Versa is compatible with ALL sheet and fluid applied waterproofing membranes.
The Ebbe VERSA ABS Bond Flange Drain base can be installed in multiple different ways for your specific needs.
3 Ways To Install:
Low Profile Installation
Need an ultra-low profile drain?
- Perfect for curb-less, barrier-free, and American Disability Act (ADA) showers.
- 1/4" thick outer flange directly on subfloor.
- Connects directly to 2" or 3" waste pipe with Waste Pipe Connector (included).
- Low-profile installation requires a bonded mortar bed or pre-manufactured shower tray.
- Large recess allows the Riser to be flush with the Bond Flange.
Mortar Bed or Foam Pan Installation
Need a bonding flange drain for surface waterproofing?
- Surface waterproofing solution for foam tray or mortar bed installations.
- Center Well is a built-in weep area.
- Only surface waterproof over the fabric.
- Connects directly to 2" or 3" waste pipe with Waste Pipe Connector (included).
Mortar Bed Installation
Have an existing drain, and want to convert it to surface waterproofing?
- Remodeling? No need to remove an existing clamp collar drain.
- Attach the VERSA Bond Flange in place of the clamping ring to convert to surface waterproofing or foam tray shower system.
Complete your installation with the Ebbe Pro Drain Cover, designed to fit in the included Ebbe Square Drain Riser.
| SKU | T-DRAIN EZ 4026 |
|---|---|
| In the Box |
|
| UPC | 892013002337 |
| Weight (lbs.) | 0.70 |
| Non-Returnable | No |
| Manufacturer | Ebbe |
| Manufacturer Part Number | E4026 |
| Dimensions (L x W x H) | 8.25" x 8.25" x (3.58" - 4.78") |
