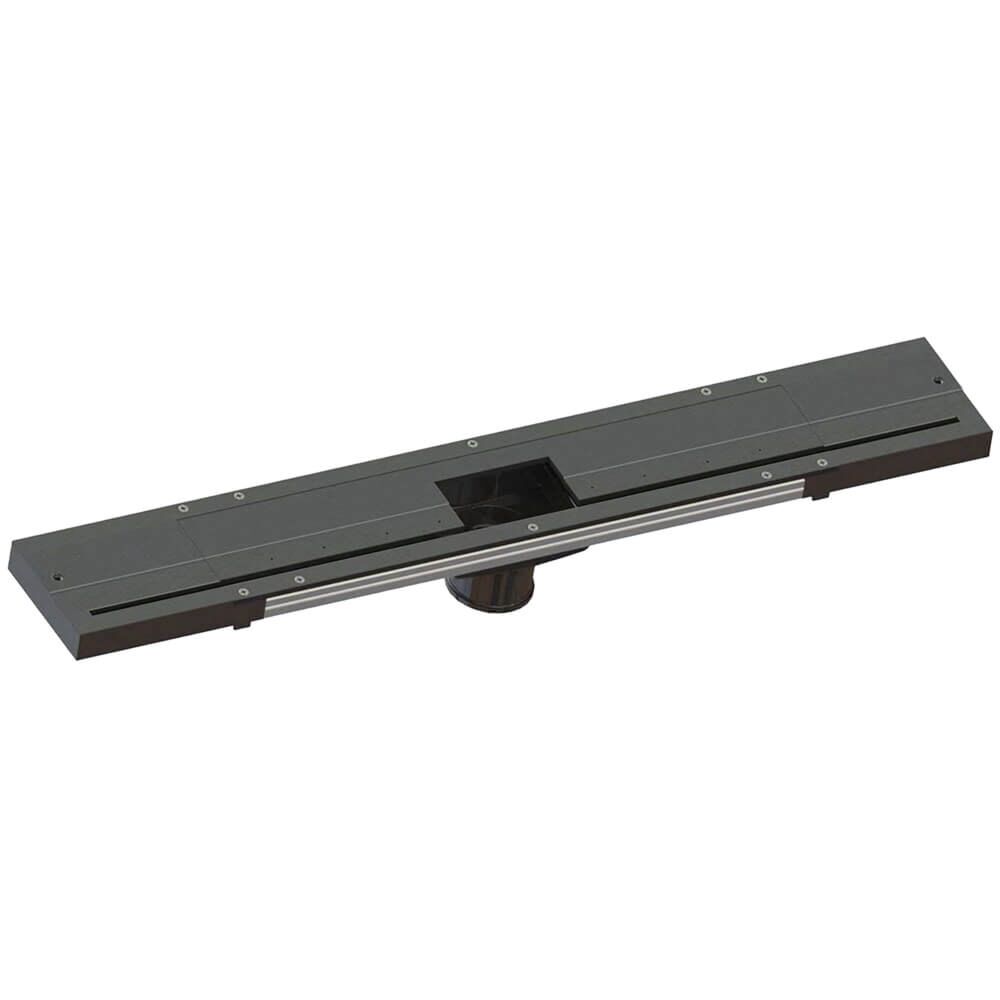

Ebbe INNI Line Drain Installation Kit

The Ebbe INNI Line Drain Installation Kit is an invisible, tile-over-line drain that compliments clean, modern showers.
You can cut a single INNI to the desired length (between 73-3/4" – 22") on-site prior to installation. This gives you a precise, wall-to-wall drain channel that enables a single slope floor – ideal for large format tile.

Ebbe INNI Line Drain Installation Kit Features:

• Length adjustable for the perfect wall-to-wall drain channel (22" to 73-7/16")
• Low Maintenance ABS Sloped Surfaces
• 2+ Drains Can Be Coupled End to End
• Drain Channel Runs wall-to-wall
• The INNI’s internal slope maintains water flow for a fresh, clean drain.
• Ebbe INNI can be installed in 3 different configurations: At-Entry, At Wall, and In-Shadow
• Small Convenient Access Cover
• Its access panel is smaller than your phone, for easy cleaning and waste pipe access. The Ebbe INNI Cleaning Brush Set is sold separately
• Each kit includes finishing trims. See the Product Brochure for more details
• Ebbe INNI Kits come in three heights to match the thickness of your tile. 1/4", 3/8" and 1/2
• INNI Line Drain Kit includes everything you need for installation

Three ways to Install:

In-Sight Install: This installation places the Drain Channel away from the walls in your shower.
At-Wall Install: This installation places the Drain Channel flush against a tiled wall.
In-Shadow Install: This installation places the Drain Channel under the wall tile. This is the least visible option.

NOTE: The INNI Drain Body is made of ABS, glues directly to a 2" waste pipe. PVC requires adaption via crossover cement or rubber coupling.
If you are doing a hot-mop installation, an INNI Hot Mop Receptor is required. (Sold Separately)

As a quick reference, here are the tools NOT included in the kit needed for installation:

• At least 4 oz. ABS cement
• Power Drill
• Circular Saw, Miter Saw, Tile Saw
• Urethane Sealant and Caulk Gun
• Fiberglass Mesh Tape
• Tape Measure
• Utility Knife
• Polymer Modified Thinset
• Square
• Spirit Level
• Min. 3/8" x 3/8" Notched Trowel
