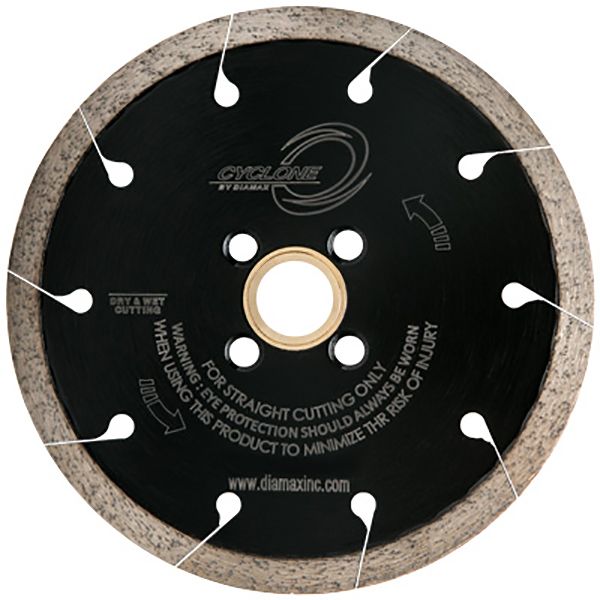

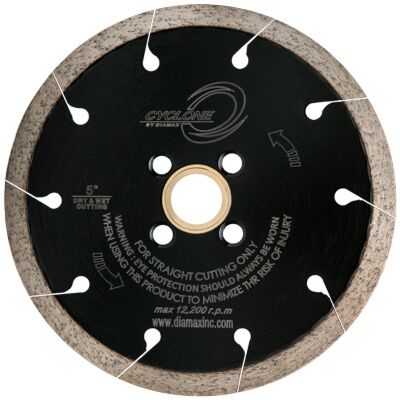

Diamax Cyclone Continuous Slot Rim Blade

The Most versatile Slot Rim Blade that cuts granite, marble, porcelain, and ceramic tile. (Straight Cuts Only)
As low as $21.00

Brand: Diamax

Availability: Sold In Store - Ships From Store (More Info)

Shipping: Free on orders over $49 to Continental US (More Info)

Only %1 left
SKU
T-BLADE CSR

Diamax Cyclone Continuous Slot Rim Blade Features:

  • The most versatile blade that cuts granite, marble, porcelain, and ceramic tile
  • Also used widely in countertop fabrication for granite, engineered stone and marble
  • Ideal for cleaning seams and preparing material for miter joints
  • Slotted for more aggressive cutting with minimal chipping (Except 10")
  • Blades 12" or longer are wet cutting only

Diamax Cyclone Continuous Rim Blade Specifications:

Item# Size Arbor Max RPM
CSR040 4" 5/8" - 7/8" - 20 mm 15,300
CSR045 4.5" 5/8" - 7/8" - 20 mm 13,200
CSR050 5" 5/8" - 7/8" - 20 mm 12,200
CSR060 6" 5/8" - 7/8" - 20 mm 10,000
CSR070 7" 5/8" – DKO 8,600
CSR100 10" 5/8" - 7/8" - 1" 6,100
CSR120 12" 5/8" - 7/8" - 1" 6,300
More Information
SKUT-BLADE CSR
Non-ReturnableNo
ManufacturerDiamax
Blade TypeContinuous Rim
Arbor Size5/8" - 7/8" - 20 mm - DKO
No Load Speed (rpm)15,300 - 6,300
Ceramic Tile PerformanceExcellent
Porcelain Tile PerformanceExcellent
Glass Tile PerformanceGood
Marble PerformanceExcellent
Wet or DryWet or Dry
