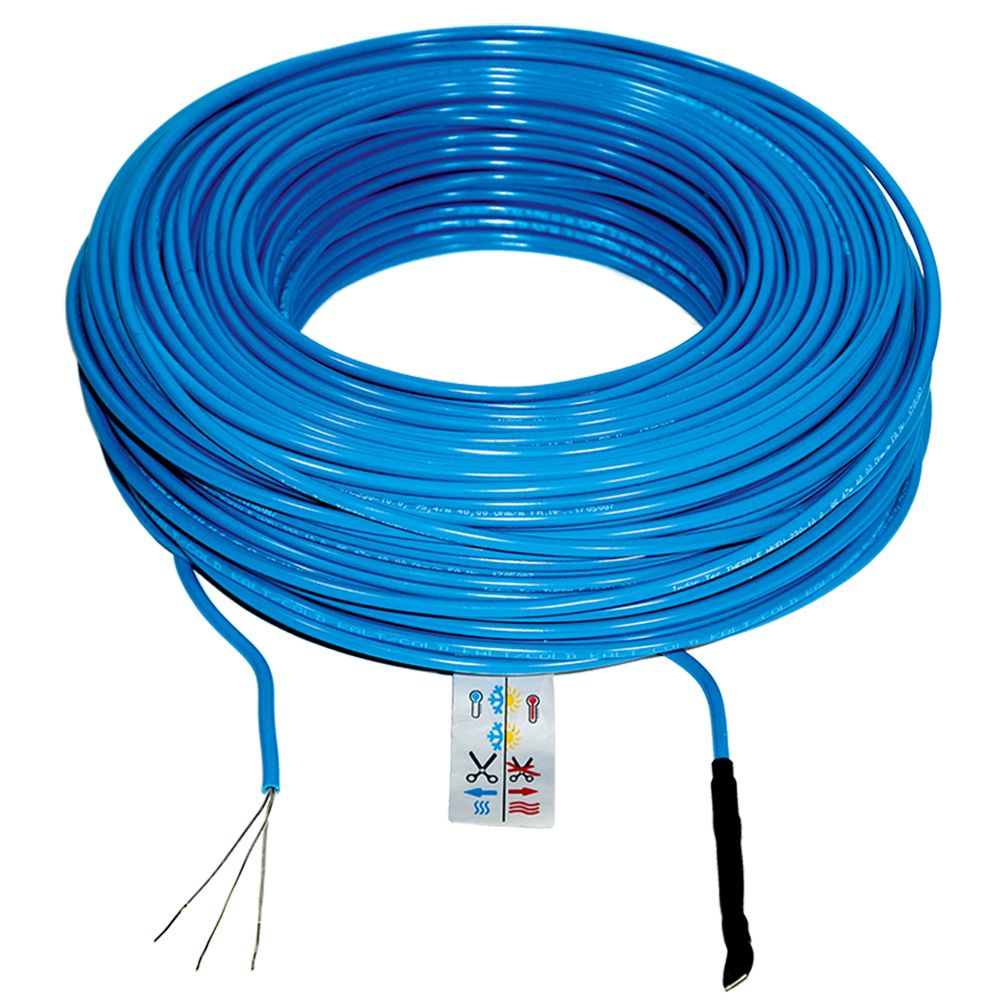

Ardex Flexbone Heat Cables - 240V

Be the first to review this product
Ardex 240v Flexbone Heat Cables are engineered with aluminum tubing and FEP cable insulation to produce maximum heat spread with minimal wattage.
As low as $157.90

Brand: Ardex

Availability: Sold in Store - Ships from Store or Factory (More Info)

Shipping: Free to Continental US (More Info)

Only %1 left
SKU
AR FHC 240

Ardex Flexbone Heat is an electrical in-floor heating system for use with tile or stone. The unique crossbones pattern provides less touch points between the cables and the membrane, and less air space within the mat structure, providing faster and more efficient heating of the floor covering. The unique design also allows for easy prefilling in just one pass with Ardex high-performance mortars, or approved Ardex Self-Leveling Underlayments can be used for easier, faster prefilling to fully encase the heat cables.

Ardex 240v Flexbone Heat Cables Features:

  • Designed for use in the Ardex Flexbone Heat Membrane.
  • Cold/Hot junction self-contained within the cable; no bulky connection box to cut and bury
  • Two (2) provided Floor Sensors (one with heat cable / one with thermostat)
  • 11% less wattage required per sq. ft.
  • Less cable required per sq. ft.
  • Highest quality FEP cable insulation
  • Heat resistant up to 401°F (205°C)
  • Aluminum tubing guarantees ZERO electromagnetic fields

Ardex 240v Flexbone Heat Cable Size and Coverage Chart:

Model Voltage Heat Area
(sq. ft.)		 Cable Length
(ft.)		 Watts Total Resistance
Ω
ARDEX UH 910-15 240 15 39.6 150 384
ARDEX UH 910-22 240 21.5 57.9 225 256
ARDEX UH 910-28 240 28 78 300 192
ARDEX UH 910-36 240 35.5 98 375 153.6
ARDEX UH 910-42 240 42 118 451 128
ARDEX UH 910-49 240 48.5 136.4 525 109.71
ARDEX UH 910-55 240 55 156.4 600 96
ARDEX UH 910-63 240 62.5 176.4 675 85.33
ARDEX UH 910-68 240 68 196.4 750 76.8
ARDEX UH 910-81 240 81 234.8 900 64
ARDEX UH 910-95 240 95 274.8 1,050 54.86
ARDEX UH 910-108 240 107.5 313.2 1,200 48
ARDEX UH 910-122 240 121.5 353.2 1,350 42.86
ARDEX UH 910-134 240 133.5 391.6 1,500 38.4
ARDEX UH 910-151 240 150.5 439 1,679 34.31
ARDEX UH 910-172 240 172 510.8 1,954 29.48
ARDEX UH 910-194 240 569.2 173.5 2,177 26.46
ARDEX UH 910-216 240 215.5 635.5 2,431 23.69
ARDEX UH 910-248 240 247.5 744.8 2,849 20.22

Download Product Brochure

Download Technical Data Sheet



More Information
SKUAR FHC 240
Non-ReturnableNo
ManufacturerArdex
Voltage240
