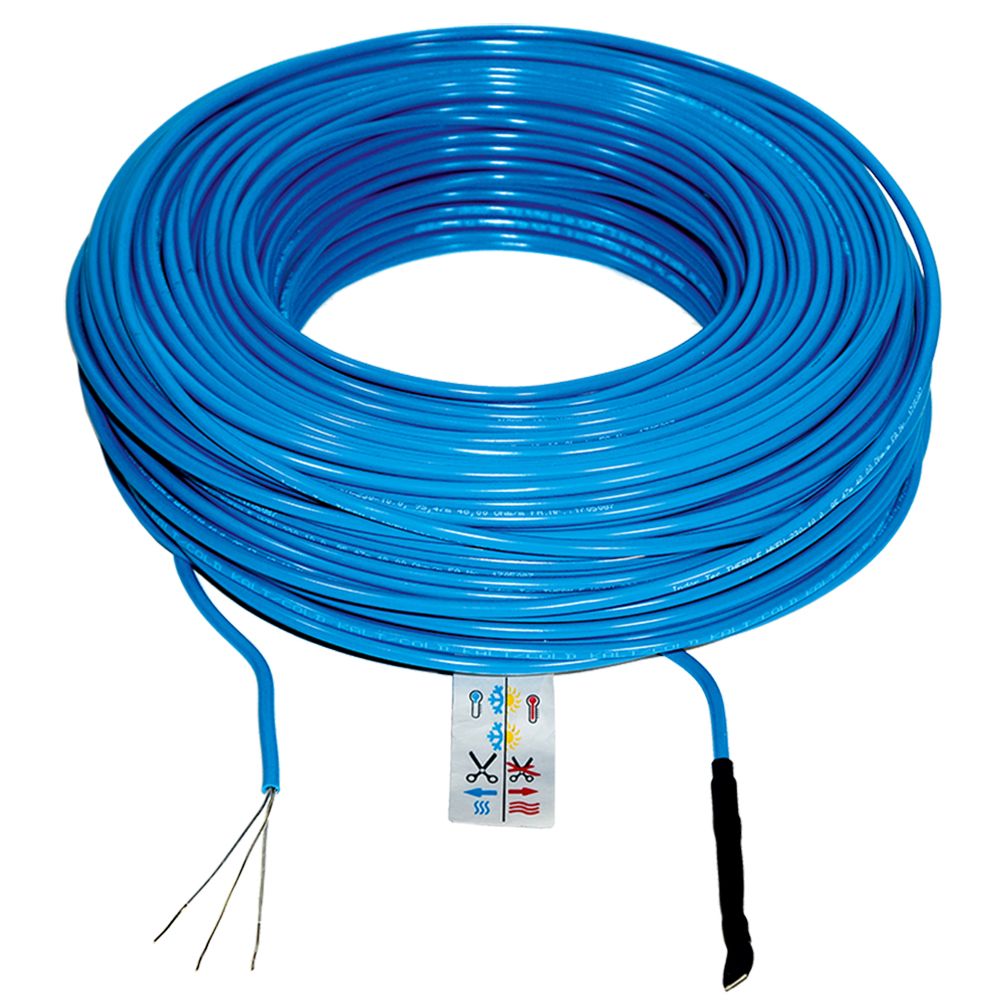

Ardex Flexbone Heat Cables - 120V

The 120v Ardex Flexbone Heat Cables are engineered with aluminum tubing and FEP cable insulation producing maximum heat spread with minimal wattage.
As low as $155.20

Brand: Ardex

Availability: Sold in Store - Ships from Store or Factory (More Info)

Shipping: Free to Continental US (More Info)

Only %1 left
SKU
AR FHC 120

Ardex Flexbone Heat is an electrical in-floor heating system for use with tile or stone. The unique crossbones pattern provides less touch points between the cables and the membrane, and less air space within the mat structure, providing faster and more efficient heating of the floor covering. The unique design also allows for easy prefilling in just one pass with Ardex high-performance mortars, or approved Ardex Self-Leveling Underlayments can be used for easier, faster prefilling to fully encase the heat cables.

Ardex 120v Flexbone Heat Cables Features:

  • designed for use with Ardex Flexbone Heat Membrane.
  • Cold/Hot junction self-contained within the cable; no bulky connection box to cut and bury
  • Two (2) provided Floor Sensors (one with heat cable / one with thermostat)
  • 11% less wattage required per sq. ft.
  • Less cable required per sq. ft.
  • Highest quality FEP cable insulation
  • Heat resistant up to 401°F (205°C)
  • Aluminum tubing guarantees ZERO electromagnetic fields
  • Diameter of the cables is 5.0 mm (tolerance +0.2/-0.2 mm)

Ardex 120vFlexbone Heat Cable Size Chart:

Model Voltage Heat Area
(sq. ft.)
Cable Length
(ft.)
Watts Total Resistance
Ω
ARDEX UH 910-15 120 15 39.6 150 96
ARDEX UH 910-22 120 21.5 57.9 225 64
ARDEX UH 910-28 120 28 78 300 48
ARDEX UH 910-36 120 35.5 98 375 38.4
ARDEX UH 910-42 120 42 118 451 32
ARDEX UH 910-49 120 48.5 136.4 525 27.43
ARDEX UH 910-55 120 55 156.4 600 24
ARDEX UH 910-63 120 62.5 176.4 675 21.33
ARDEX UH 910-68 120 68 196.4 750 19.2
ARDEX UH 910-81 120 81 234.8 900 16
ARDEX UH 910-95 120 95 274.8 1050 13.71
ARDEX UH 910-108 120 107.5 313.2 1200 12
ARDEX UH 910-122 120 121.5 353.2 1350 10.67
ARDEX UH 910-134 120 133.5 391.6 1500 9.6
ARDEX UH 910-151 120 150.5 439 1679 8.58

Download Product Brochure

Download Technical Data Sheet



More Information
SKUAR FHC 120
Non-ReturnableNo
ManufacturerArdex
Voltage120
