Alpha Porcellana Porcelain Tile Blades - 4-3/8" - 10"
Brand: Alpha Tools
Availability: Sold In Store - Ships From Store (More Info)
Shipping: Free to Continental US (More Info)

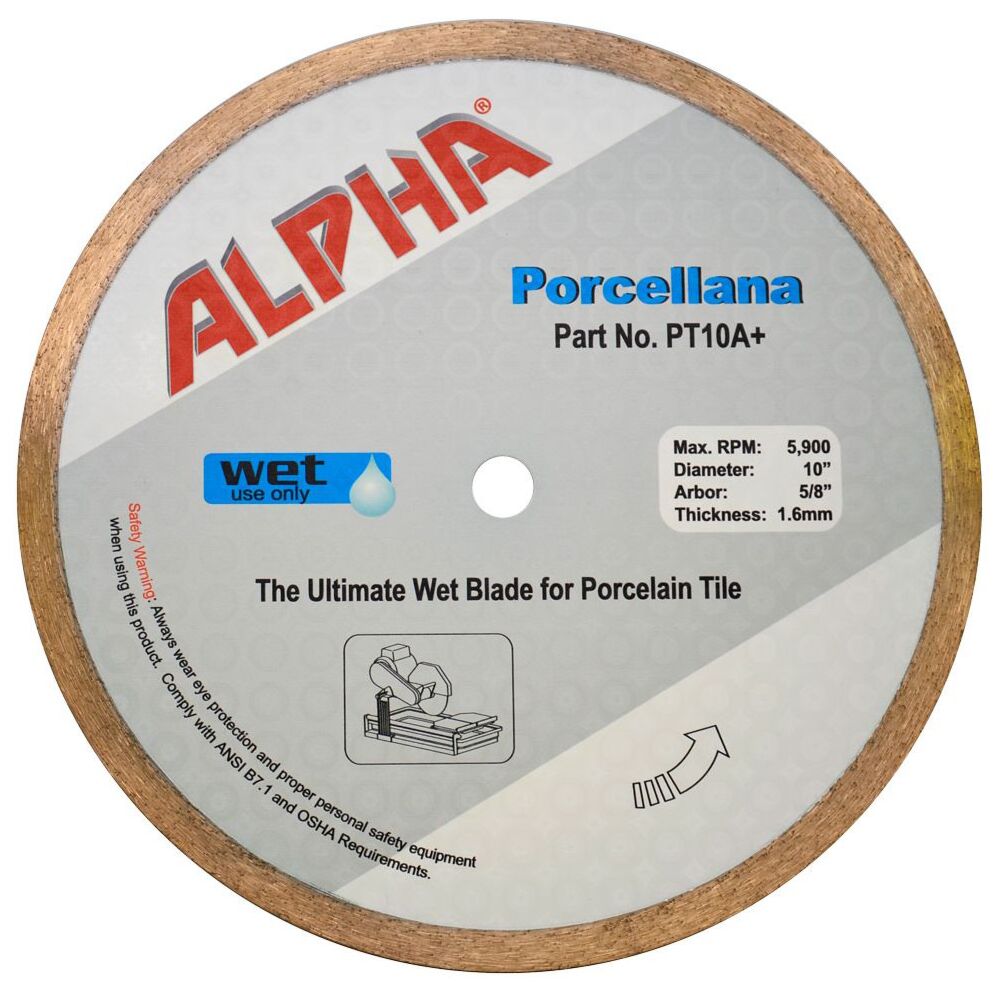

The Alpha Porcellana is a premium wet cutting tile saw blade designed for use by tile professionals. The diamond grits and matrix are specially formulated to cut dense porcelain tile and slab with minimal chipping at optimal speed. The Alpha Porcellana produces high quality cuts that minimize waste. The 8" and 10" blades are equipped with a 10mm continuous rim, which provides for a long cutting life.
The Porcellana blade never needs dressing, and that improves operator performance and efficiency. All these features combined make the Alpha Porcellana quite cost-effective. Alpha also offers this blade in a 4-3/8" and 5" sizes to fit our AWS-110 and AWS-125 Wet Stone Cutters. This allows tile contractors to perform wet cutting of porcelain tile on the job site, without the need for a bulky tub or tile saw.
Alpha Porcellana Blades are designed to cut:
- porcelain
- marble
- granite
- engineered stone
- travertine
- ceramic tiles
Featuring a 3/8" (10mm) tall diamond layer for long life, the Porcellana works well in combination with the Alpha AWS-110 and AWS-125 wet stone cutters.
Alpha Porcellana Tile Saw Blade Specifications:
| Part # | Size | Thickness | Maximum RPM | Arbor(s) |
| PT04A+ | 4-3/8" | 1.4mm/.055" | 13,200 | 7/8", 20mm |
| PT05S | 5" | 1.4mm/.055" | 12,200 | 7/8" |
| PT07A+ | 7" | 1.6mm/.062" | 8,400 | 5/8" |
| PT08A+ | 8" | 1.6mm/.062 | 7,400 | 5/8" |
| PT10A+ | 10" | 1.6mm/.062" | 5,900 | 5/8" |
Download Product Brochure
Download Safety Data Sheet
Download Porcellana Helpful Hints
Download Porcellana HowTo Use
Download Blade Chart
| SKU | T-ALPH PT |
|---|---|
| Non-Returnable | No |
| Manufacturer | Alpha Tools |
| Warranty | 30 Days Parts/Labor |
| Blade Type | Continuous Rim |
| Arbor Size | 5/8", 7/8", 20mm |
| No Load Speed (rpm) | 13,200 - 5,900 |
| Ceramic Tile Performance | Excellent |
| Porcelain Tile Performance | Excellent |
| Glass Tile Performance | Not Recommended |
| Marble Performance | Good |
| Thickness | .055" - .062" |
| Wet or Dry | Wet Only |
| Segment Height (in) | .393 |
| Dimensions (L x W x H) | 4-3/8" x 4-3/8" x .055" - 10" x 10" x .062" |
| Weight (lbs.) | 0.36 - 1.05 |
