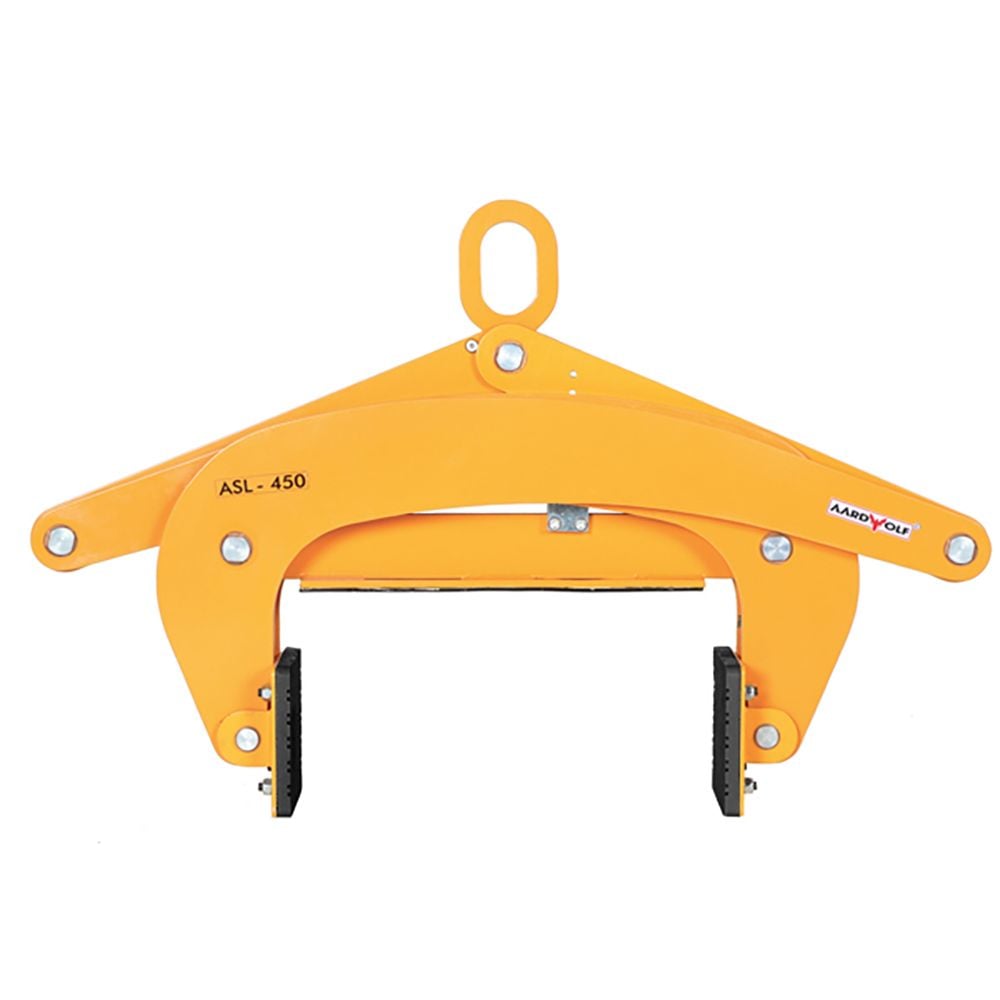

Aardwolf Scissor Clamp Lifters
The Aardwolf Scissor Clamp Lifter is equipped with a rubber contact pad for the safe handling of materials and comes in multiple sizes depending on weight load limits.
As low as $445.00
Brand: Aardwolf
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)
Only %1 left
SKU
T-AW ASL
The Aardwolf Scissor Clamp Lifters are equipped with rubber contact pads for the safe handling of materials. By means of a gravity controlled locking latch, the clamp automatically grips and releases the materials. Suitable for lifting marble and granite slabs, tombstones, concrete barriers, curbs (kerbs) and median walls.
Aardwolf Scissor Clamp Lifters Feature:
- Auto locks and unlocks
- Long-lasting, high friction replaceable Polyurethane gripping pads
- Protective rubber-lined bar prevents the material from chipping
- Powered coated in high visibility safety yellow paint
Aardwolf Scissor Clamp Lifter Specifications:
| Â | ASL105 (0-105mm) | ASL125 (0-125mm) | ASL200 (50-200mm) | ASL300 (150-300mm) | ASL450 (300-450mm) | |||||
| Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | |
| Grip Range | 0 - 105 mm | 0 – 4" | 0 - 125 mm | 0 – 5" | 50 - 200 mm | 2" – 8" | 150 - 300 mm | 6" – 12" | 300 - 450 mm | 12" - 18" |
| Working Load Limit | 750 kg | 1,653 lbs | 750 kg | 1,653 lbs | 1,500 kg | 3,307 lbs | 1,500 kg | 3,307 lbs | 2,000 kg | 4,408 lbs |
| Product Weight | 24 kg | 53 lbs | 29 kg | 64 lbs | 47 kg | 104 lbs | 48 kg | 106 lbs | 85 kg | 187 lbs |
| Gross Weight | 28 kg | 62 lbs | 33 kg | 73 lbs | 50 kg | 110 lbs | 51 kg | 112 lbs | 99 kg | 218 lbs |
| Packaging Dimensions | 690 x 230 x 410 mm | 27.2" x 9" x 16.1" | 790 x 230 x 400 mm | 26.8" x 8.7" x 14.6" | 820 x 230 x 450 mm | 32.3" x 9.1" x 17.7" | 700 x 230 x 480 mm | 27.6" x 9.1" x 18.9" | 1,050 x 230 x 690 mm | 41.3" x 9" x 27.2" |
| Optional Extra: | Short Chain and Shackle | Short Chain and Shackle | - | - | - | |||||
| SKU | T-AW ASL |
|---|---|
| Weight (lbs.) | 53.0 - 187.0 |
| Non-Returnable | No |
| Manufacturer | Aardwolf |
| Dimensions (L x W x H) | 26.8" x 8.7" x 14.6" - 41.3'' x 9'' x 27.2' |
