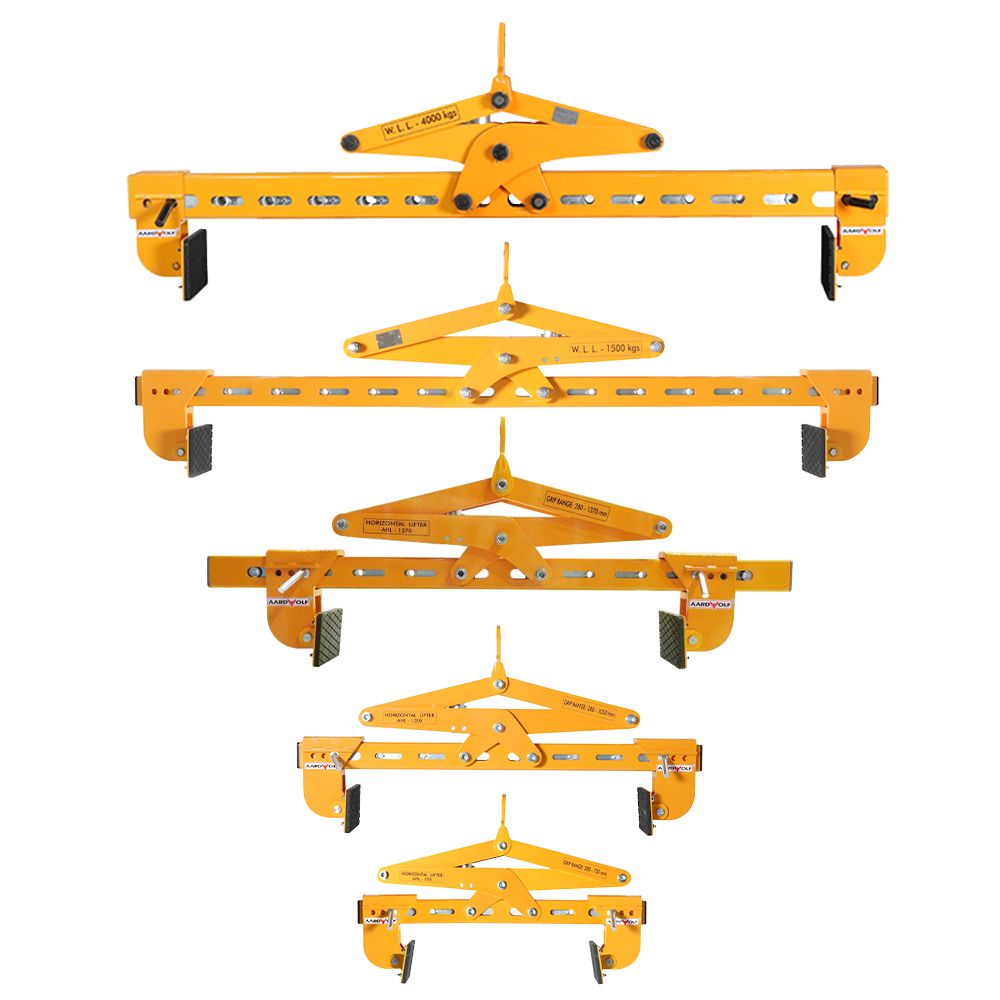

Aardwolf Horizontal Stone Lifting Clamp
Brand: Aardwolf
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)
The Aardwolf Horizontal Stone Lifting Clamp is designed for lifting and moving concrete blocks and natural stone. Long-lasting, high friction replaceable Polyurethane gripping pads protect load surfaces against damage. Suitable for use on cranes or forklift booms. These robust clamps are suitable for integrating various lifting apparatuses such as cranes or forklift booms, ensuring versatility across different operational needs.
The functionality of the clamps is further enhanced by their gravity-powered operational mechanics, ensuring that the clamp jaws are responsive and intuitive. They are designed to automatically engage and release, opening on one lift and securely clamping down on the next, a feature that significantly streamlines the workflow.
Ardwolf Horizontal Stone Lifting Clamp Features:
- Adjustable jaw opening width.
- A large gripping range, making it suitable for a wide range of applications.
- Long-lasting, high friction replaceable Polyurethane gripping pads.
- The clamps allow for the locking and unlocking of loads, requiring minimal manual intervention and thus enhancing operational safety and efficiency.
- Lifting eye for attaching to a crane hook.
- Auto locks and unlocks the load.
Aardwolf Horizontal Stone Lifting Clamp Specifications:
| Â | AHLC-730 | AHLC-1050 | AHLC-1370 | AHLC-2010 | AHLC-2010-4T | |||||
| Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | |
| Grip range | 280 - 730 mm | 11"Â - 28" | 280 - 1,050 mm | 11"Â - 41" | 280 - 1,370 mm | 11"Â - 54" | 280 - 2,010 mm | 11"Â - 79" | 300 - 2,010 mm | 12"Â - 79" |
| Working load limit | 1,500 kg | 3,307 lbs | 1,500 kg | 3,307 lbs | 1,500 kg | 3,307 lbs | 1,500 kg | 3,307 lbs | 4,000 kg | 8,818 lbs |
| Product Weight | 112 kg | 247 lbs | 121 kg | 267 lbs | 124 kg | 273 lbs | 137 kg | 302 lbs | 228 kg | 503 lbs |
| Gross weight | 123 kg | 271 lbs | 136 kg | 300 lbs | 141 kg | 311 lbs | 155 kg | 342 lbs | 248 kg | 547 lbs |
| Packaging dimensions | 1,410 x 530 x 330 mm | 55.5" x 20.9" x 13" | 1,500 x 530 x 360 mm | 59" x 20.9" x 14.2" | 1,840 x 530 x 390 mm | 72.4" x 20.9" x 15.4" | 2,450 x 530 x 360 mm | 96.5" x 20.9" x 14.2" | 2,450 x 560 x 440 mm | 96.5" x 22" x 17.3" |
| SKU | T-AW AHCL |
|---|---|
| Weight (lbs.) | 247.0 - 503.0 |
| Non-Returnable | No |
| Manufacturer | Aardwolf |
| Dimensions (L x W x H) | 55.5" x 20.9" x 13" - 96.5" x 22" x 17.3" |
