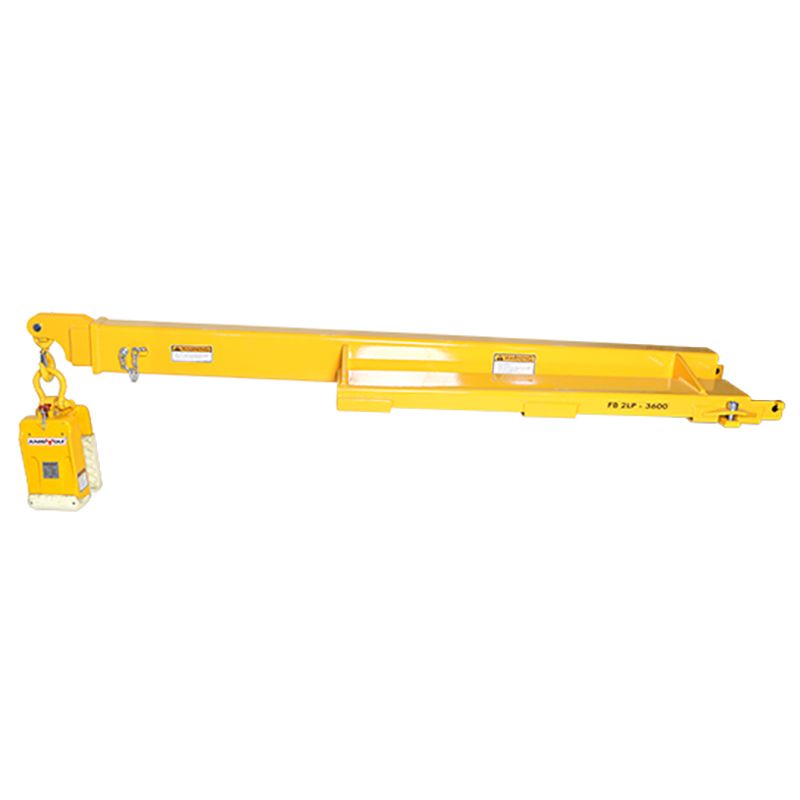

Aardwolf Forklift Boom FB2LP-3600 Straight Boom
The Aardwolf Forklift Boom FB2LP-3600 has a low profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor.
$1,478.00
Brand: Aardwolf
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)
SKU
T-AW FB2LP-3600
The Aardwolf Forklift Boom FB2LP-3600 12ft Extension Straight Boom has a low profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor. The FB2LP-3600 is a telescoping two section rectangular tube steel boom built to comply with current safety guidelines.
Aardwolf Forklift Boom Features:
- All Forklift Booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety.
- The boom extension is designed so it cannot be pulled all the way out.
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins.
| FB1-2720 | FB2-3580 | FB2LP-3600 | FB3-5380 | |||||
| Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | Metric (mm-kg) | Imperial (inch-lbs) | |
| Slip onto forks designed with fork pockets |
150 x 58 mm | 5.9" x 2.3" | 165 x 65 mm | 6.5" x 2.6" | 165 x 65 mm | 6.5" x 2.6" | 165 x 65 mm | 6.5" x 2.6" |
| Fork pockets from the center to center |
366 mm | 14.4" | 377 mm | 14.8" | 377 mm | 14.8" | 377 mm | 14.8" |
| Manually telescopes | 1,610 - 2,724 mm | 63.4" - 107" | 2,107 - 3,580 mm | 83'' - 141" | 2,121 - 3,603 mm | 84.5" - 141.9" | 2,196 - 5,380 mm | 86.5" - 212" |
| Increment | 557 mm | 21.9" | 491 mm | 19.3" | 494 mm | 19.4" | 796 mm | 31.3" |
| Working load limit | Retracted: 1,500 kg Extended: 500 kg |
Retracted: 3,307 lbs Extended: 1,102 lbs |
Retracted: 1,500 kg Extended: 600 kg |
Retracted: 3,307 lbs Extended: 1,322 lbs |
Retracted: 2,400 kg Extended: 600 kg |
Retracted: 5,291 lbs Extended: 1,323 lbs |
Retracted: 2,400 kg Extended: 300 kg |
Retracted: 5,291 lbs Extended: 661 lbs |
| Product Weight | 91 kg | 201 lbs | 136 kg | 300 lbs | 134 kg | 295 lbs | 163 kg | 359 lbs |
| Gross weight | 100 kg | 220 lbs | 146 kg | 322 lbs | 144 kg | 318 lbs | 173 kg | 381 lbs |
| Packaging dimensions | 1,750 x 620 x 410 mm | 69" x 24.4" x 16.1" | 2,250 x 630 x 550 mm | 88.6" x 24.8" x 21.7" | 2,280 x 640 x 37 mm | 89.8" x 25" x 14.6" | 2,350 x 630 x 580 mm | 92.5" x 24.8" x 22.8" |
Note: Three alternatives for attaching the Aardwolf Lifters to the forklift boom:
- Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and load. Prevents slab breakage when traversing rough terrain. It also allows the lifter to be lowered down into confined spaces, such as when lifting a short slab from a racking system.
- Forged Aluminium Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
- Bow Shackle 3.0T. General-purpose. Useful in many applications for safe and secure attachments.
| SKU | T-AW FB2LP-3600 |
|---|---|
| Weight (lbs.) | 295.0 |
| Non-Returnable | No |
| Manufacturer | Aardwolf |
| Manufacturer Part Number | FB2LP-3600 |
| Dimensions (L x W x H) | 89.8" x 25" x 14.6" |
